MARETRON

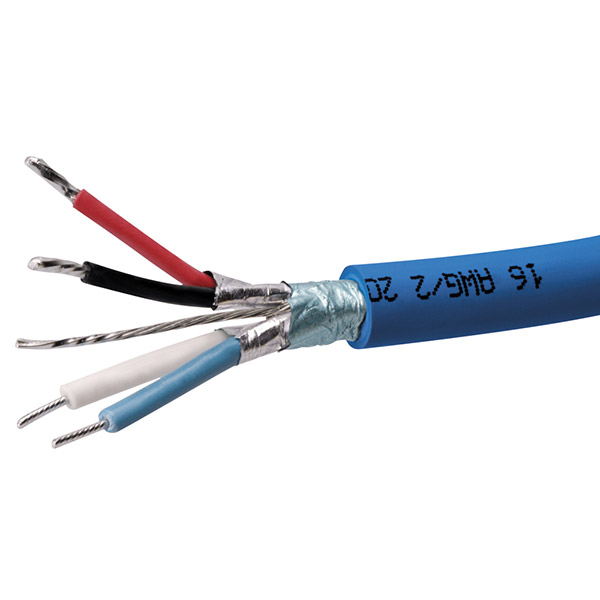

Mini Bulk Cable - 100 Meter - Blue
- Manufacturer part #
- NB1-100C
- UPC
- 873804003047
- Condition
- New
$865.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details
Maretron Mini Bulk Cable - 100 Meter - BlueSpecifications
Overall
Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1
Insulation Material: PE (data), PVC (power)
Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)
Power Pair
Wire: 2x15 (1.45mm) AWG
Resistance/Conductor: 3.44 Ohms/1000 ft max
Max Amperage: 16 Amps - NB1, 14 Amps - NG1
Color Code: Red/Black
Data Pair
Wire: 2x18 (1.02mm) AWG
Characteristic Impedance: 120 Ohms +/- 10%
Capacitance: 12 pF/1000 ft Max
Color Code: White/Blue
Approvals
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 APPROVED
IEC: IEC-61162-3
Overall
Power Pair
Data Pair
Approvals
Shipping weight: 38 lb
