MASTERVOLT

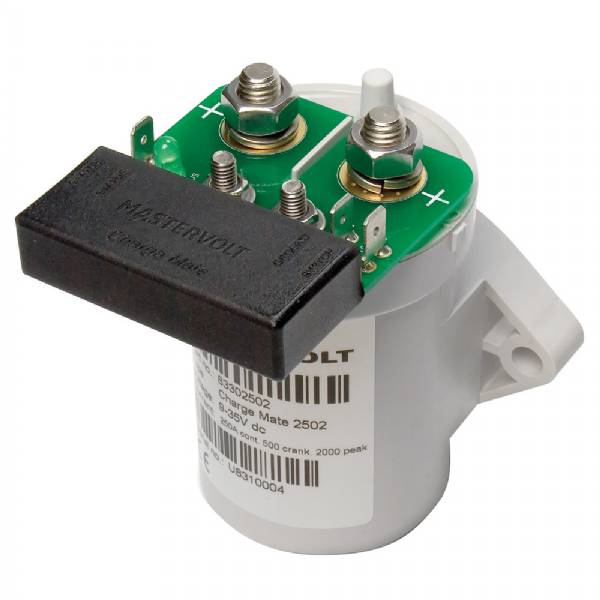

Charge Mate 2502

Manufacturer part #: 83302502
UPC: 816882021077
Condition: New

$268.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

Charge Mate 2502

A secondary battery is becoming increasingly common. As a second battery can prevent the main battery from depleting and being unable to start, this seems like a safe and reliable solution.

The second battery, however, also has to be charged regularly. The Charge Mate series connects both batteries during charging and keeps them isolated when discharging.

The Charge Mate 1202 and 2502 are especially practical for small systems.

General Specifications:

Battery voltage: 12/24V
Max. current: 500 A
Number of modes: On, off, auto, start to assist
Dimensions, hxwxd: 90 x 80 x 85 mm/3.5 x 3.1 x 3.3 inch
Weight: 0.65 kg/1.4 lb
Compliance: CE

Technical Specifications:

Power consumption: switch open: < 1 mA at 12/24 V DC
Inrush current (250 ms): 2000 A
Switch on voltage: 13-15 V (12 V) / 26-30 V (24 V)
Switch on delay: 30 sec
Switch off voltage: < 12.25 V... > 15 (12 V) / < 25.5... > 30 V (24 V)
Switch off delay: 3 minutes
Relay: Electro-mechanical
Temperature range (ambient temp.): -40 °C to 60 °C/-40 °F to 140 °F
Protection degree: IP21

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Shipping weight: 1.65 lb
