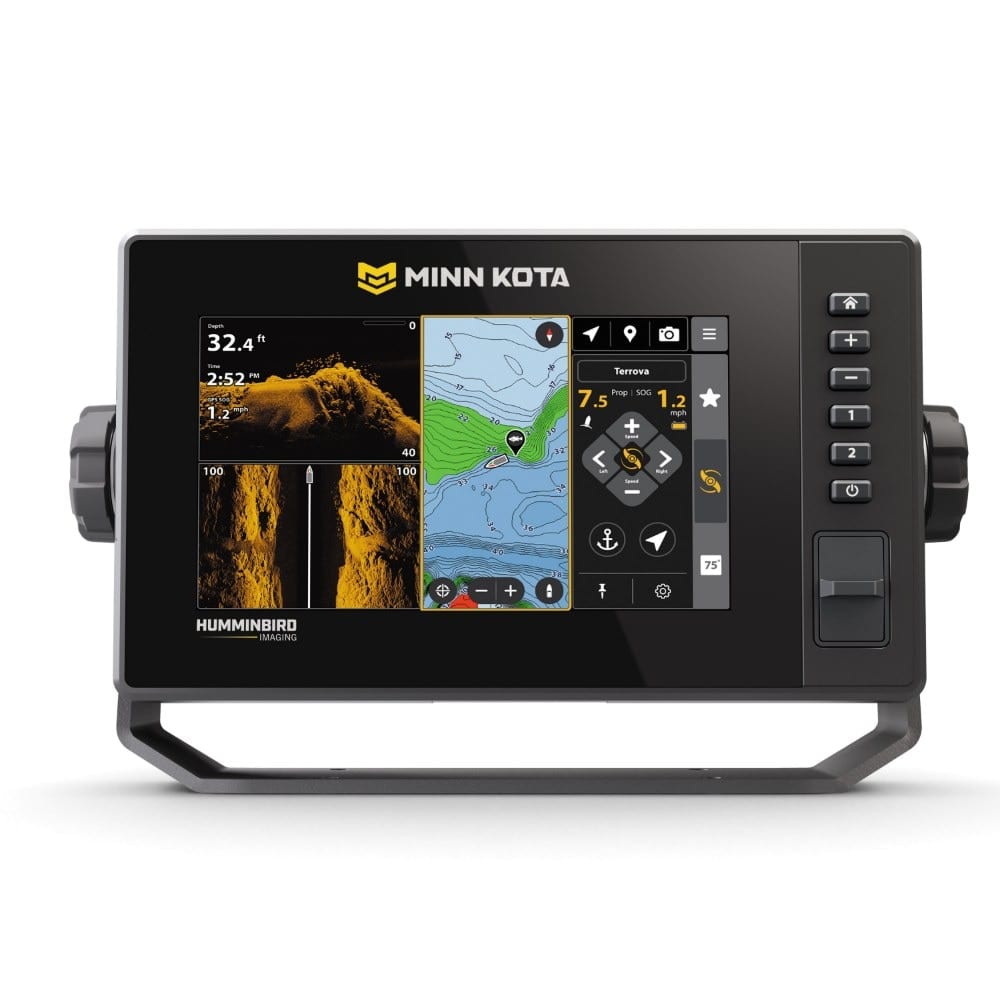

X7 7in MFD Control Head Only VX

Minn Kota X7 CHO Fish Finder, 7 in Control Head Only
Model: 412420-1VXCHO

• Control head only - this model does not include a transducer. Connect to compatible Minn Kota® trolling motors with built-in sonar, add accessory transducers including live sonar, or share sonar data from a networked Minn Kota® or Humminbird® fish finder
• Industry-leading sonar powered by Humminbird Imaging™ - Side Imaging® and Down Imaging® provide views up to 400 feet below and out to either side of your boat, plus Dual Spectrum CHIRP sonar for exceptional 2D sonar with superior target separation
• One seamless fishing system - Minn Kota® trolling motors, fish finders, maps, sonar and shallow water anchors work together, integrating what your fish finder sees with what your trolling motor does
• Draw and Navigate™ - draw a course with your finger and the motor automatically takes you where you want to go
• Intelligent Depth Control™ - detects depth changes, alerts you immediately, and if necessary automatically engages Spot-Lock® and deploys your shallow water anchors
• Wireless connectivity manages compatible gear across your Minn Kota® system without complex rigging or cables
• Best-in-class display clarity and brightness, even in rain, high sun or when wearing polarized lenses
• Minn Kota® Fishing App manages your fish finder, waypoints, trolling motor and shallow water anchors
• AutoChart® Live maps depth contours, bottom hardness and vegetation as you drive, with 8 hours of built-in recording time
• Simplified software updates downloaded over Wi-Fi and pushed through to networked devices
• Cross Touch® interface - control your view by touchscreen or keypad
• Media Tool captures screenshots and records imaging 30 seconds into the past or up to two minutes into the future
• Compatible with live sonar in Forward, Down or Landscape mode (sold separately)
• High-speed Ethernet networking to connect multiple fish finders, live sonar or radar
• Compatible with optional Minn Kota™ Maps Premium chart options
• NMEA 2000® networking built in
• If in-dash mounted, an external GPS antenna is required to ensure accurate positioning and navigation (sold separately)
• 2 year limited warranty included, extended to 3 year limited warranty with product registration

Minn Kota™ X Series™ Fish Finders combine industry-leading Humminbird Imaging™, innovative navigation features, seamless wireless control, and exceptional display clarity to help anglers find, navigate to, and stay on fish with confidence. With Minn Kota™ Maps included, the Minn Kota X Series uses cutting-edge sonar to give you a clearer, more complete picture of structure and fish. As the brains of your seamless fishing system, what your fish finder sees is what your trolling motor does, so you can navigate to a favorite waypoint or use the new Draw and Navigate feature to let your Minn Kota trolling motor take you to your desired spot. Once you find the fish, innovative navigation features like Intelligent Depth Control let you avoid shallow water while protecting your equipment. Plus, get best-in-class clarity and brightness with a high-resolution touchscreen - even in rain, high sun, or when wearing polarized lenses. Control it all with the Minn Kota® Fishing App. Spend less time looking and more time fishing with Minn Kota X Series.

Specifications

General
Product dimensions	3.3 in W x 6.26 in L x 11.69 in H
Product weight	5.5 lbs
Series	X Series
Upgradable software	Yes
Warranty	Three-year warranty with registration
Country of origin	United States
Display
Display size, diagonal	7 in
Display pixel matrix	1024H x 600V
Display type	Color TFT
Display colors grayscale	24-bit
HDMI compatible	No
Mounting
Mount, standard	Gimbal
Mount, standard size	10.689 in W x 6.574 in H x 3.177 in D
Mount, optional	Gimbal Mount or In-Dash Mounting Kit
Mount, optional size	9.365 in W x 5.523 in H x 2.25 in D
Sonar
Transducer mount location	Transom
Sonar, standard	Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
Sonar coverage	20°, 42°, 60° and (2) 86° at -10dB
Sonar, optional	50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide and Low
CHIRP frequencies supported	Full mode (150-220 kHz), narrow mode (180-240 kHz), wide mode (140-200 kHz)
Sonar frequencies supported	50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
Depth, sonar	600 ft (standard transducer); 3,500 ft (optional Airmar CHIRP)
CHIRP imaging frequencies supported	455 kHz (440-500 kHz), MEGA (1075-1150 kHz)
Depth, Down Imaging	200 ft (455 kHz)
Range, Side Imaging (side to side)	800 ft (455 kHz); 400 ft (MEGA)
Screen snap shot	Included
Sonar recording	Included
Navigation
GPS chartplotting	Included
GPS receiver	Internal
GPS trackplotting	Included
Waypoints, routes, tracks/points	10,000, 50, 50/20,000
NMEA 2000	Included
Custom digital readout	Yes
Custom view selections	Yes
Speed	Included
Temperature	Built in
Temperature alarm	Yes
Temperature graph	No
AutoPilot	Yes
Technical Details
Memory card slot	Dual micro SD
Power draw	1.5 amps
Power input	10.8-20 Vdc
Power output peak-to-peak	8000 watts
Power output RMS	1000 watts
Minn Kota Talon shallow water anchor compatibility	Yes
Radar compatibility	Yes
5-port Ethernet switch compatibility	Yes
AIS compatibility	Optional
Autopilot compatibility	Yes
Heading sensor GPS (NMEA 0183) compatibility	No
Heading sensor GPS (NMEA 2000) compatibility	Yes
View preset keys	Yes
X-Press menu system	Yes
Batteries required	Yes (not included)

What's in the Box:

• Control head
• Power adapter
• Mounting bracket
