NAVPOD
PP4500-03 PowerPod for Lowrance Elite-7 Chirp
- Manufacturer part #
- PP4500-03
- UPC
- 659988110579
- Condition
- New
$293.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details

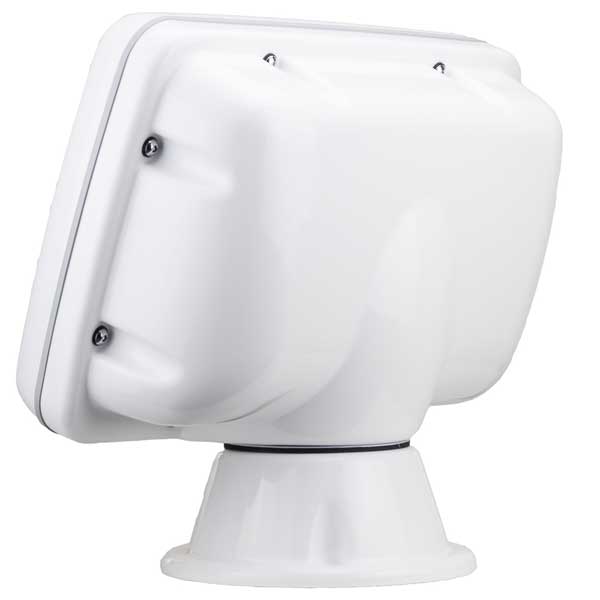

NAVPOD PP4500-03 PowerPod
Model: PP4500-03- PowerPod Pre-Cut for Lowrance Elite-7 CHIRP 7? Fishfinder/Chartplotter
PowerPods are better than bracket mounting. Sturdy and secure, yet clean and attractive, PowerPods position your fishfinder/chartplotter at a 20-degree viewing angle. PowerPods provide the clean look of flush mounting with the advantages of a swivel base.
PowerPods are now available in two color options. Black carbon and high gloss white. Constructed out of durable ABS like all Gen3 NavPods, these new black carbon models have the same high gloss finish with UV stability.
NavPods are made to protect your marine electronics from the harshest of wet boating conditions. All NavPods are manufactured with a double gasket system that provides an excellent watertight seal. PowerPods keep the spray off the electrical connections on the back of your fishfinder/chartplotter, assuring reliability and longevity of your marine electronics.
Your fishfinder/chartplotter is easily flush mounted into the pre-cut face of the PowerPod. The base has a large 1.8" opening (1.1" on smaller models). This provides plenty of room for running wires and connectors through the base to conceal them from the elements. This provides protection for wires and connectors from water intrusion, UV exposure or damage from getting snagged and ripped out of their sockets.
All NavPods come with a security wrench and nickel chrome-plated stainless steel tamperproof screws for protection from theft. PowerPod pre-cut models available for 7?, 9?, 12?and 16? LCD displays from all major marine electronic manufacturers. NavPod backs up their commitment to quality by offering a 10-year warranty on all Gen3 NavPods.
PowerPods â€" Protection, Convenience, Security.
sample
sample
Specifications| Overall Size | |
| Height | |
| in | 9.9 |
| cm | 25.1 |
| Width | |
| in | 11.98 |
| cm | 30.4 |
| Depth | |
| in | 6.36 |
| cm | 16.2 |
| Usable Face | |
| Height | |
| in | 6 |
| cm | 15.2 |
| Width | |
| in | 9.95 |
| cm | 25.3 |
| Depth | |
| in | 4.125 |
| cm | 10.5 |
| Max Cutout | |
| Height | |
| in | 5.5 |
| cm | 14.0 |
| Width | |
| in | 9.5 |
| cm | 24.1 |
| Base Footprint | |
| Height | |
| in | 2.31 |
| cm | 5.9 |
| Width | |
| in | 5.5 |
| cm | 14.41 |
Specifications
NavPods are manufactured with a custom co-extruded acrylic capped ABS material. We use the absolute best UV resistant material that provides a very high gloss white finish that matches gel-coated fiberglass. The Gen3 enhancements now include a thicker gauge material that improves strength and provides for better structural rigidity.
The Waterproof Seal
All NavPods are manufactured with a double gasket system providing an excellent watertight seal between the front and back of the NavPod for protection of your Marine Electronics. NavPods are made to withstand the harshest of wet offshore boating conditions. Gen3 enhancements include a thicker external silicone gasket with improved flush fit. The internal EPDM gasket is now 50% thicker and is not subject to "compression set" like many rubber compounds. This is important when you need to open the NavPod in the future to service your electronics.
The Nickel Chrome Plated Screws
We use all stainless steel mounting hardware that is supplied with each NavPod. Large round head tamperproof screws have deeper sockets for the NavPod wrench for better holding ability when tightening than the previous screws. For Gen3 we provide nickel chrome-plated stainless steel tamperproof screws for security combined with a little bling!
The Manufacturing Process
Heavy-gauge thermoforming is considered an art since many processes come into play. It all starts with the design and development of the tooling. We are fortunate to have experienced in-house design engineers who utilize CAD programs like Solidworks, Catia and AutoCad. Surfcam is used to interface with our CNC machining centers to produce quality tools with precision tolerances.
Our Commitment to Quality
We are committed to producing the best possible waterproof housing for Marine Electronics. Now with two decades of experience under our belt, we are confident you will have years of trouble free service and a long lasting high gloss finish. We will stand behind our commitment by now offering a 10-year warranty on all new Gen3 NavPods.
Shipping weight: 6 lb
