NAVPOD
RMX4900-01 Railmount for Raymarine eS95/97/98
- Manufacturer part #
- RMX4900-01
- UPC
- 659988110944
- Condition
- New
$463.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details
NAVPOD RMX4900-01 Railmount
Model: RMX4900-01- RailMount Pre-Cut for Raymarine eS95/eS97/eS98 & AXIOM PRO 9 (fits 1 in or 1.25 in tubing)

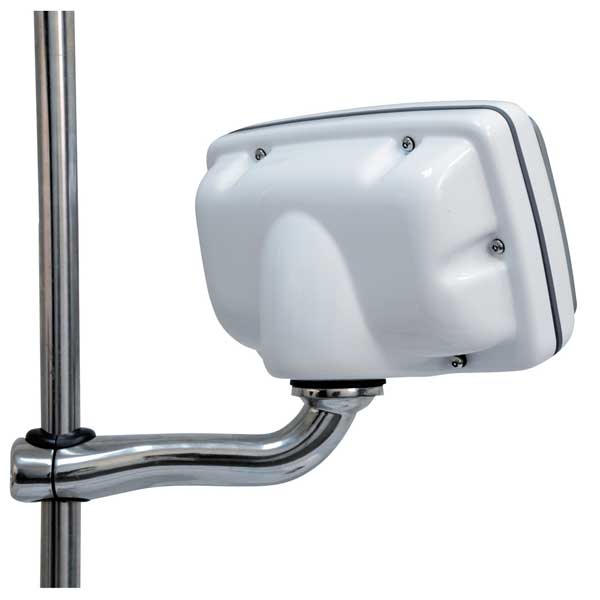

RailMount NavPods are best used for mounting of an autopilot control, sailing instrument, or small chartplotter onto an existing pedestal guard. Fits onto any 1 in or 1.25 in diameter tube. A Nickel Chrome-Plated Stainless Steel arm is used to mount a NavPod. The NavPod can rotate 180 degrees for easy viewing while sitting under the dodger on a rainy day. All wiring runs from the NavPod, down the center of the stainless steel arm, and into the pedestal guard. This application provides a clean and sturdy installation for electronics, without replacement of the pedestal guard.
RailMounts are designed for all popular standard size instruments as well as 7 and 9 inch chartplotters.
Structural Rigidity - The Gen3 enhancements now include a thicker gauge acrylic capped ABS material that improves strength and provides better structural rigidity. This thicker material allows for a larger waterproof seal. The better the structural rigidity, the less flexing when tightening and more uniform pressure on the seal. The excellent UV stability of the acrylic is combined with the durability of the ABS. The acrylic cap protects the ABS from UV and its potentially damaging effects on plastic.
Waterproof Seal - All RailMount NavPods are manufactured with a double gasket system providing an excellent watertight seal. This seal provides the best protection of your Marine Electronics. NavPods are made to withstand the harshest wet offshore boating conditions. Gen3 enhancements include a thicker external silicone gasket with improved flush fit. The internal Poron Microcell Polyurethane gasket is now 50% thicker and is not subject to "compression set" like many rubber compounds. This is important when you need to open the NavPod in the future in order to service your electronics. The gasket will continue to do its job.
Nickel Chrome-Plated Stainless Steel - We use all 316 stainless steel hardware that is supplied with each NavPod. Large round-head tamper-resistant screws have deeper sockets for the NavPod wrench for better holding ability when tightening than screws used on our Traditional Series NavPod. The Nickel Chrome-Plated Stainless Steel tamper-resistant screws provide security combined with a little style!
Specifications| Overall | |
| Height | |
| in | 11.61 |
| cm | 29.5 |
| Width | |
| in | 14.25 |
| Width | 36.2 |
| Depth | |
| in | 7.72 |
| cm | 19.6 |
| Usable Face | |
| Height | 7.39 |
| in | 7.39 |
| cm | 18.8 |
| Width | |
| in | 12.36 |
| cm | 31.4 |
| Depth | |
| in | 5.29 |
| cm | 13.4 |
| Max Cutout | |
| Height | |
| in | 8.09 |
| cm | 20.5 |
| Width | |
| in | 13.26 |
| cm | 33.7 |
| RMX Radius | |
| Height | |
| in | 2.75 |
| cm | 7.0 |
| Width | |
| in | 6.98 |
| cm | 17.7 |
| View Angle | 30 |
Specifications
The Hi-Gloss Material
NavPods are manufactured with a custom co-extruded acrylic capped ABS material. We use the absolute best UV resistant material that provides a very high gloss white finish that matches gel-coated fiberglass. The Gen3 enhancements now include a thicker gauge material that improves strength and provides for better structural rigidity.
The Waterproof Seal
All NavPods are manufactured with a double gasket system providing an excellent watertight seal between the front and back of the NavPod for protection of your Marine Electronics. NavPods are made to withstand the harshest of wet offshore boating conditions. Gen3 enhancements include a thicker external silicone gasket with improved flush fit. The internal EPDM gasket is now 50% thicker and is not subject to "compression set" like many rubber compounds. This is important when you need to open the NavPod in the future to service your electronics.
The Nickel Chrome Plated Screws
We use all stainless steel mounting hardware that is supplied with each NavPod. Large round head tamperproof screws have deeper sockets for the NavPod wrench for better holding ability when tightening than the previous screws. For Gen3 we provide nickel chrome-plated stainless steel tamperproof screws for security combined with a little bling!
The Manufacturing Process
Heavy-gauge thermoforming is considered an art since many processes come into play. It all starts with the design and development of the tooling. We are fortunate to have experienced in-house design engineers who utilize CAD programs like Solidworks, Catia and AutoCad. Surfcam is used to interface with our CNC machining centers to produce quality tools with precision tolerances.
Our Commitment to Quality
We are committed to producing the best possible waterproof housing for Marine Electronics. Now with two decades of experience under our belt, we are confident you will have years of trouble free service and a long lasting high gloss finish. We will stand behind our commitment by now offering a 10-year warranty on all new Gen3 NavPods.
Shipping weight: 9.4 lb
