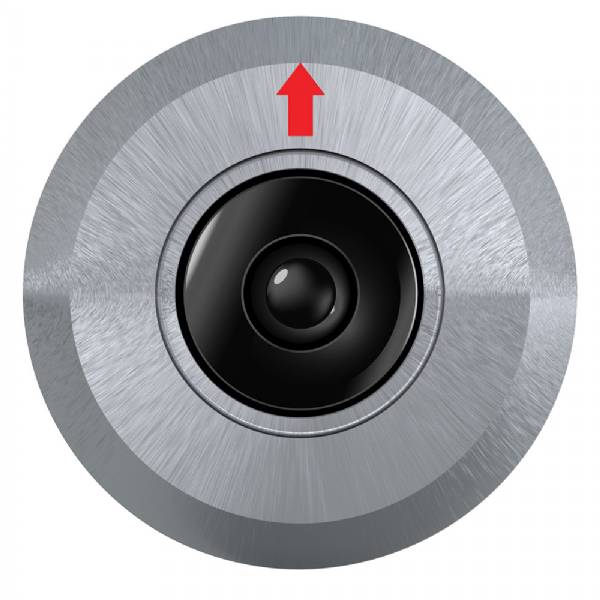

Eyes Ocean GEN2 NTSC Camera Stainless Steel Bezel

OceanLED EYES HD Gen2 Underwater Camera Stainless Steel

Model: 011811

• Full 1080p HD
• 2.1 Megapixel
• HD-SDI Output
• TritoniumTM Optical Lens

Never miss the moment the fish strikes or when you're lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event and can provide evidence of your winning catch.

The new EYES HD Ocean Camera can be mounted anywhere allowing you to capture the magic of your own underwater aquarium beneath your boat in full 1080p High Definition video.

Can be added to a CCTV system to increase security.

Specifications

Minimum Illumination	0.1 LUX
Minimum-Maximum operating voltage DC	9-14V DC
Current / Amp draw (DC)	12V DC 110mA MAX
Effective Pixels	1984 (H) x 1105 (v)
H. Resolution	1080 TV Lines
Video Output	HD-SDI / 1.0 Vp-p Composite ( 75O )
S/N Ratio	More than 50dB
Electronic Iris (Auto)	1/50, 1/60 - 1/100,000 sec
Controllable Max Gain	23dB
Lens	3.7mm
Operating Temperature	14 degF~112 degF (-10 degC~+50 degC)
Overall Length	135mm (5 5/16 in)
Diameter of Bezel	58mm (2 9/32 in)
Total weight	65g (2.3oz)
Extension cable length (standard)	10m (30 feet)
Hole cut-out for body	35mm (1 3/8 in)
Material	Stainless Steel
Lens	TritoniumTM Optical Lens
Maximum hull thickness	104mm (4 in)
