OCEANLED
X8 X-Series Midnight Blue LED
- Manufacturer part #
- 012305B
- UPC
- 5051803007241
- Condition
- New
$333.44
Estimated to ship by Monday, October 19.

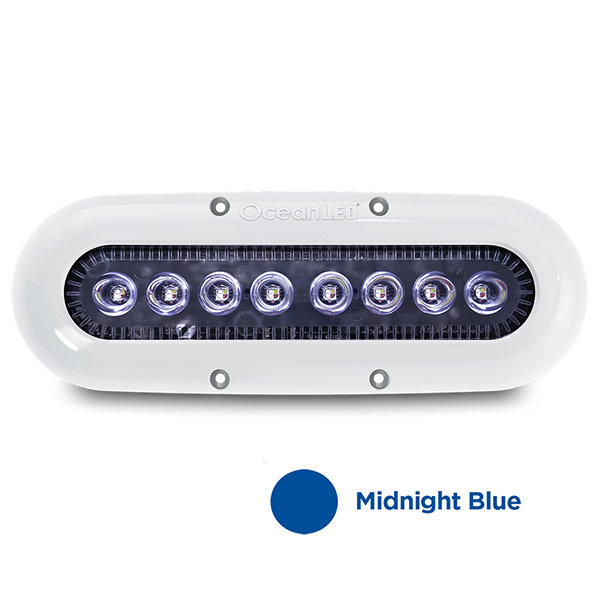

OceanLED X8 X-Series Underwater Light Midnight Blue
Model: 012305B- 2,900 Lumens / 2,300 Fixture Lumens - Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.
- 60 deg Beam Angle - A wide-angled, focused beam lights up a large area of the water.
- Compact and simple design - Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.
- Simple to install - Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 4 screws to hold in place. No bonding required.
- Easy to clean - Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scrubbing each time you use your boat.
- Fish-Strobe Mode - Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.
- Active Thermal Control - ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
OceanLED X-Series is a superb underwater LED light range for small and medium sized fishing and cruising boats.
The OceanLED X-Series X8 combines brightness with affordability. Whether cruising or fishing, the X8 gives stunning performance allowing you to enjoy more time on the water with family and friends.
The X8 packs a mighty 2,300 fixture Lumens into its low profile design and utilizes focused optics to produce a 60 deg circular beam from each LED providing great water penetration, illuminating a large area.
Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.
Specifications| General | |
| Fixture Lumens | 2300 |
| Typical LED life expectancy | 40,000+ Hours |
| Approx. light penetration (avg. water quality) | 26 feet (8m) |
| Approx. Light penetration (perfect water quality) | up to 72 feet (21+m) |
| Driver type | Internal |
| Cable Length | 3 meters |
| LED color | Midnight Blue |
| Input Voltage | 12 or 24vDC |
| Input Draw | 12V DC 1.65A 24V DC 0.75A |
Specifications
- Boat size: up to 50' (15M)
- Transom / Hull spacing: 2-4' (0.5-1.2M)
- Transom quantity: 2-6
- Hull quantity: 4-8" (10-20cm)
- Maximum hull thickness: N/A
- Installation depth (to top of fixture): 300mm below water line
- In water fitting: No
Technical
- Light output equivalent to: 50W Xenon
- Fixture Lumens* (total light output from a finished fixture): 2,300
- Lumens: 2,900
- Beam angle: 60° circular
- Typical LED life expectancy: 40,000 hours
- Minimum-Maximum operating voltage DC: 9 - 32 V DC
- Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 1.65A @ 12V DC - 0.75A @ 24V DC
- Approx. light penetration (avg. water quality): 26' (8M)
- Approx. Light penetration (perfect water quality): 72' (21+M)
- Driver type: Internal
- Driver size (L x W x H): N/A
- Colour options: Ultra White - Midnight Blue or Colours
- Correlated Color Temp: 6500 K - 450 nm
- IP Rating: IP68
- Fish strobe: YES
- Anti fouling properties: Tritonium coated lens
- LED Manufacturer: CREE
Physical
- Size: 8.62" (219mm) x 3.07" (78mm)
- Depth: 0.86" (22mm)
- Total weight including electrical driver: 0.34kg
- Extension cable length (standard-hard wired to light): 9-7/64' (3M)
- Hole cut-out for cable entry: 1/2" (12.5mm)
- Material: Chemically Resistant Optical Polymer
- Lens material: Pilkington Optiwhite
= - Body construction: Machined (First Release)
- Bezel material: Plastic
- Bezel thickness: N/A
- Bezel options: Stainless Steel Bezel Optional
- Bezel colour: White
- Drag factor: N/A
- Optics: Collimator
- No of LEDs: 8
- Certification: EMC Approved
- CE Approved: Yes
Shipping weight: 1 lb
