PACER

14 AWG Gauge Striped Marine Wire 500' Spool - Red w/Black Stripe

Manufacturer part #: WUL14RD-0-500
Condition: New

$150.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

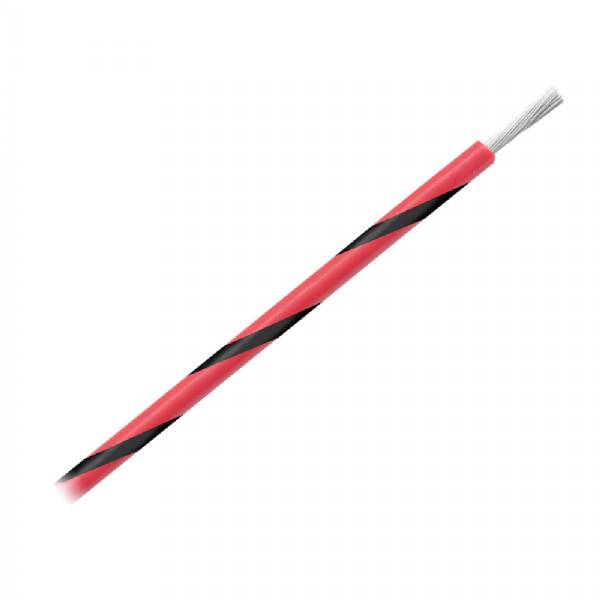

14 AWG Gauge Striped Marine Wire 500' Spool - Red with Black Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacer's primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacer's primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer? Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire? Contact a Pacer expert today.

Features:

Stranded, tinned copper conductors
Highly flexible color-coded insulation
Annealed Finely Stranded Tinned Copper ASTM b172 Class K
Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
Voltage Rating: 600-V

Applications:

Point-to-point wiring
Internal wiring of panels and motors

Compliances:

UL Standard 1426 (BC-5W2)
AWM 1015/1230
AWM 1028/1231
MTW, CSA: TEW
ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

Shipping weight: 10.2 lb
