16 AWG Gauge Striped Marine Wire 500' Spool - Brown w/Violet Stripe

Manufacturer part #: WUL16BR-7-500
Condition: New

$114.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

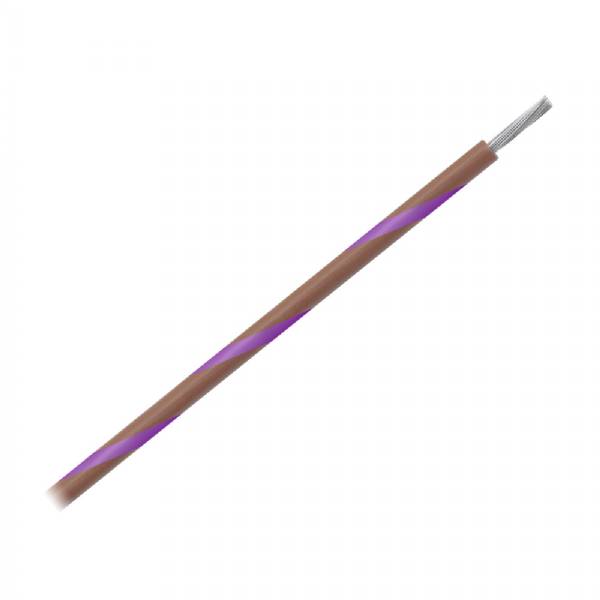

16 AWG Gauge Striped Marine Wire 500' Spool - Brown with Violet Stripe

Striped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.

How many options of 16 AWG striped marine wire does Pacer offer? The most important thing when selecting the proper striped wire is choice. By offering an enormous section, users are guaranteed to find the perfect choice. Currently, there are over 100 possible combinations of 16 AWG striped marine wires. Have a question about striped marine wire? Contact a Pacer expert today. This particular brown marine wire has a violet stripe and comes in a 500 ft. spool.

Features:

Stranded, tinned copper conductors
Highly flexible color-coded insulation
Annealed Finely Stranded Tinned Copper ASTM b172 Class K
Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

Spool Length: 500 ft.
Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC
Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil
Voltage Rating: 600-V

Applications:

Point-to-point wiring
Internal wiring of panels and motors

Compliances:

UL Standard 1426 (BC-5W2)
AWM 1015/1230
AWM 1028/1231
MTW, CSA: TEW
ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

Shipping weight: 7.7 lb
