16 AWG Striped Marine Wire 1000' Spool - Brown w/White Stripe

Manufacturer part #: WUL16BR-9-1000
Condition: New

$194.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

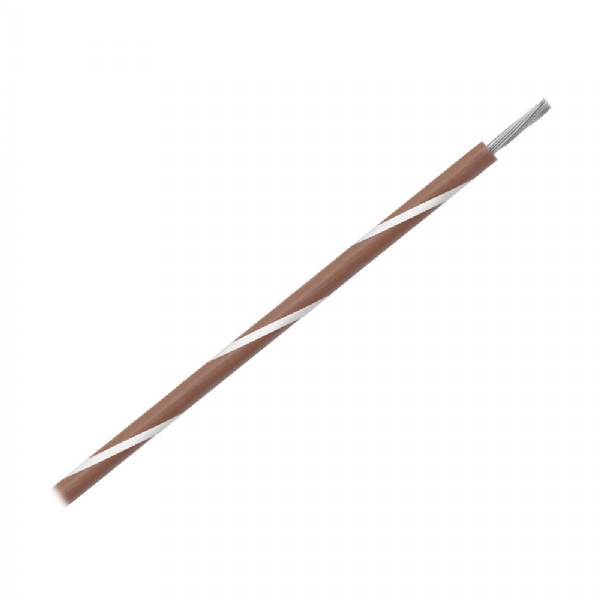

16 AWG Striped Marine Wire 1000' Spool - Brown with White Stripe

Striped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.

Features:

Stranded, tinned copper conductors
Highly flexible, color-coded insulation
Annealed Finely Stranded Tinned Copper ASTM B172 Class K
Resistant to: Acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

Point-to-point wiring
Internal wiring of panels and motors

Characteristics:

Insulation: -20 degrees C to 105 degrees C flexible, color-coded PVC
Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil
Voltage Rating: 600-V
AWG: 16
Cond. Stranding: 26/.0100
Nom. Ins. Thickness: 0.032
Nom. O.D: 0.125
Nom. Circular Mils: 2600
Approx. LB/M: 14.8

Compliances:

UL Standard 1426 (BC-5W2)
AWM 1015/1230
MTW, CSA: TEW
ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

Shipping weight: 15.1 lb
