Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy
- Manufacturer part #
- FSGM01500007A00
- Condition
- New
$1,114.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details

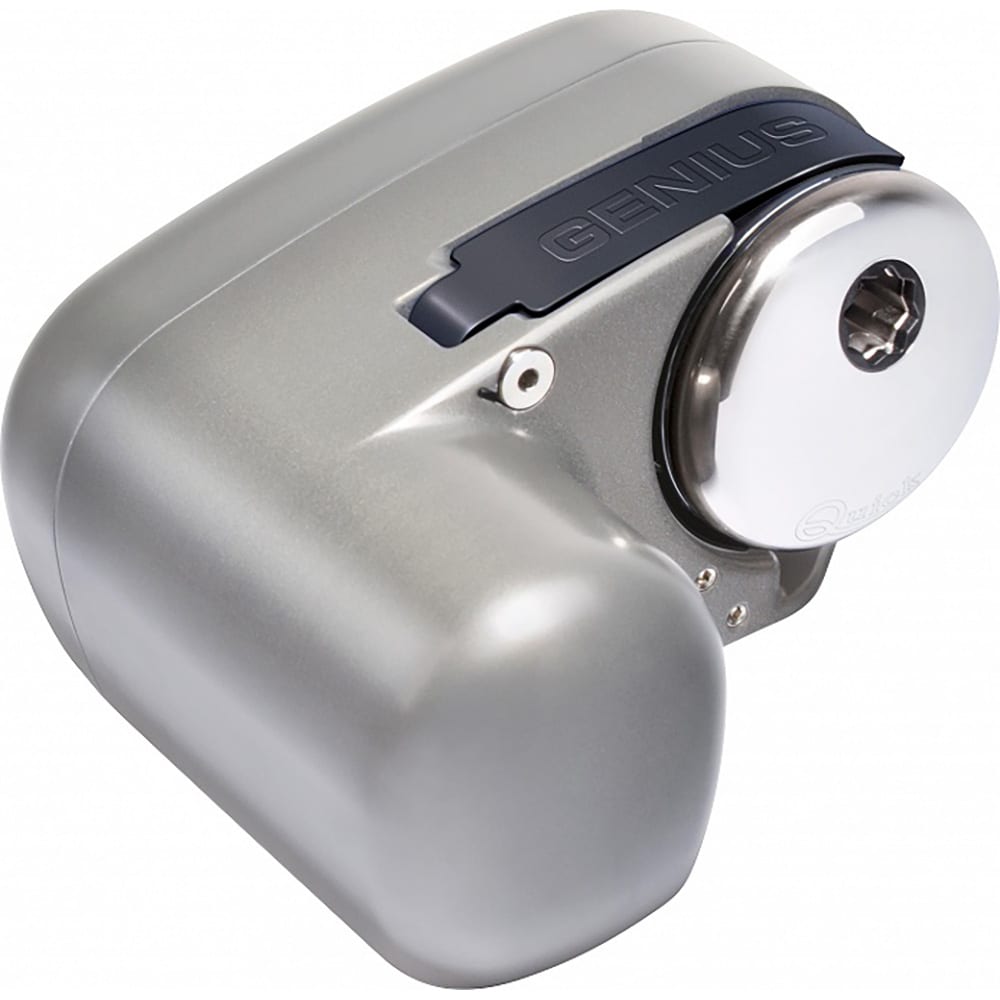

Genius GP2 500 Windlass - 150W, 12V, 1/4" Gypsy
The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Horizontal on-deck windlasses
- For boats 26-43FT
- 8MM or 5/16" Gypsy
- Requires 5/8" three-stranded polyester rope
- Anodized aluminium in hard oxide base
- White composite material base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- IP66 watertight motor
- Includes T6411-12 Solenoid
Specifications:
- Motor power - 150 W
- Motor supply voltage - 12 V
- Maximum pull - 220 Kg / 485 lb
- Maximum working load - 70 Kg / 154 lb
- Working load - 35 Kg / 77 lb
- Current absorbtion @ working load - 29 A
- Maximum chain speed - 38,9 m/min / 127.6 ft/min
- Maximum chain speed @ working load - 28,5 m/min / 93,5 ft/min
- Weight - 13.2 lb
