Prince DP2 712 Windlass - 700W, 12V, 7mm - 1/4" Gypsy - 9/16" Rope - Prewired Built
- Manufacturer part #
- FSDP20712007B01
- Condition
- New
$1,457.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details

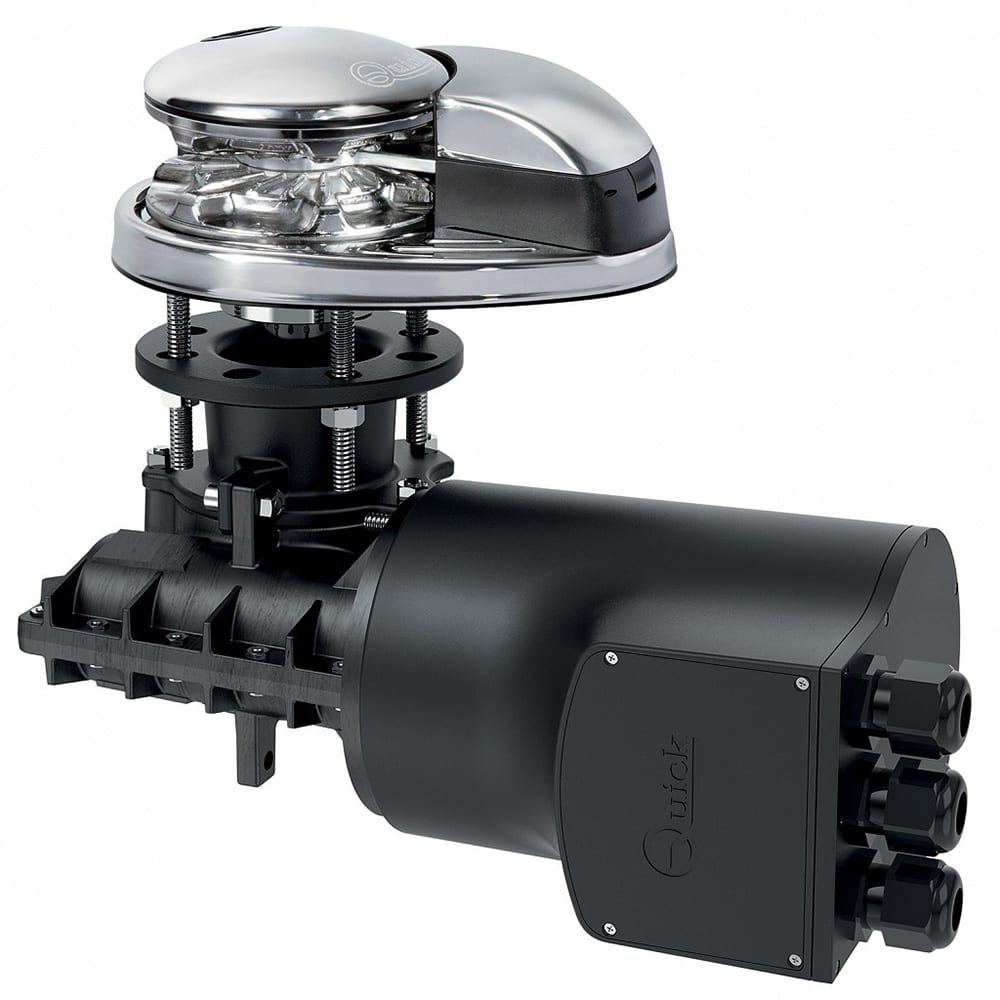

Prince DP2 712 Windlass - 700W, 12V, 7mm - 1/4" Gypsy - 9/16" Rope - Prewired Built
The DP2 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Vertical Windlass
- For Boats 23- 40 ft
- Includes T6315-12 Solenoid
- 7mm - 1/4" Gypsy
- Requires 9/16" Rope
- 700W Motor, 12V
- Stainless steel AISI 316 base
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- IP67 Motor watertight (700 - 1000 W)
- Technopolymer gearbox
Specifications:
- Motor power - 700 W
- Motor supply voltage - 12 V
- Maximum pull - 680 Kg / 1499 lb
- Maximum working load - 300 Kg / 661 lb
- Working load - 100 Kg / 220 lb
- Current absorption @ working load - 95 A
- Maximum chain speed - 22,6 m/min / 74.1 ft/min
- Maximum chain speed @ working load - 11.6 m/min / 39.1 ft/min
- Weight - 12,8 Kg / 28 lb
