Prince DP2E Windlass - 500W, 12V 7MM Chain to 9/16" Rope

Manufacturer part #: FSDP2E060007A00
Condition: New

$1,401.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Product details

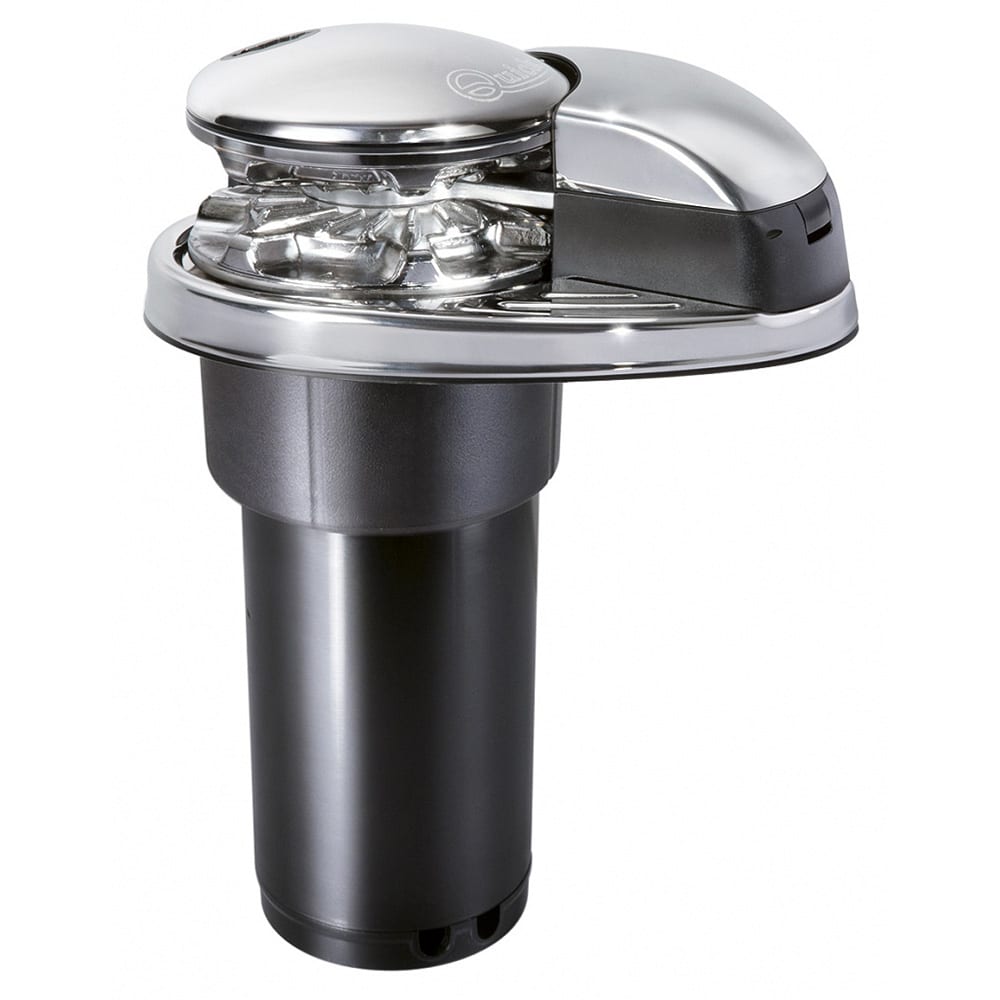

Prince DP2E Windlass - 500W, 12V 7MM Chain to 9/16" Rope

The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

Vertical windlass
Includes T6415-12 Solenoid
7mm - 1/4" Gypsy
Boats 20- 33 ft
Requires 9/16" three-stranded polyester rope
Stainless steel AISI 316 base and anodized aluminum in hard oxide.
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
Motor watertight to IP66
Anodized aluminum gearbox

Specifications:

Motor power - 500 W
Motor supply voltage - 12 V
Maximum pull - 620 Kg / 1367 lb
Maximum working load - 200 Kg / 441 lb
Working load - 65 Kg / 143 lb
Current absorption @ working load - 60 A
Maximum chain speed - 22,9 m/min / 75.1 ft/min
Maximum chain speed @ working load - 18.6 m/min / 61.0 ft/min
Weight - 8,3 Kg / 20.9 lb
