Prince DP3 1012 Windlass - 1000W - 12V - 8mm (5/16") Gypsy
- Manufacturer part #
- FSDP31012008B00
- UPC
- 8057090226188
- Condition
- New
$1,622.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details

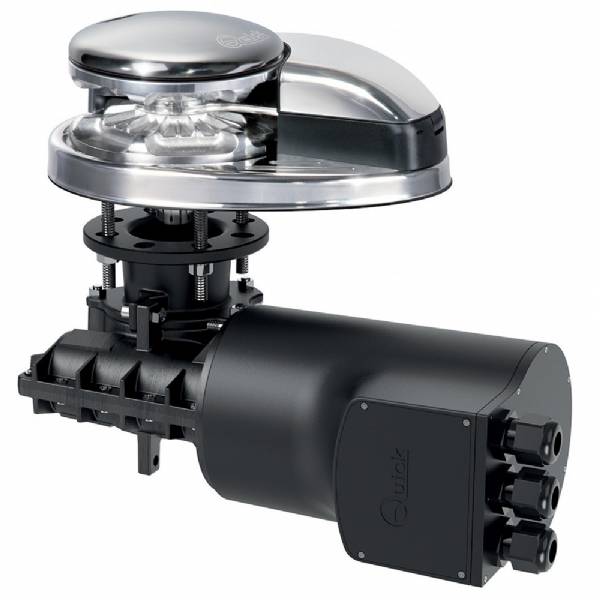

Prince DP3 1012 Windlass - 1000W - 12V - 8mm (5/16") Gypsy
This Quick Prince windlass is a vertical-axis windlass.
Applications:
- For boats 10-14 m (33-46 ft.)
Features:
- No drum
- Vertical windlasses
- Stainless steel AISI 316 base and anodized aluminum in hard oxide
- Rope and chain on a single gypsy
- Integrated sensor and a magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP67
- Technopolymer Gearbox (1000W)
Specifications:
- Rope: 5/8 in. for 8mm or 5/16" Gypsy
- Motor Power: 1000 W
- Motor Supply Voltage: 12 V
- Maximum Pull: 1000 Kg / 2204 lb
- Maximum working load: 370 Kg / 816 lb
- Working Load: 120 Kg / 264 lb
- Current Absorption @ Working Load: 140 A
- Maximum Chain Speed: 39,6 m/min / 129.2 ft/min
- Maximum Chain Speed @ Working Load: 20,4 m/min / 66.9 ft/min
- Weight - DP3 - [without drum]: 17,4 Kg / 38 lb
Shipping weight: 42.6 lb
