Prince DP3 Windlass - 700W, 12V, 8mm - 5/16" Gypsy - 5/8" Rope - Prewired Built

Manufacturer part #: FSDP30712008B00
Condition: New

$1,473.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

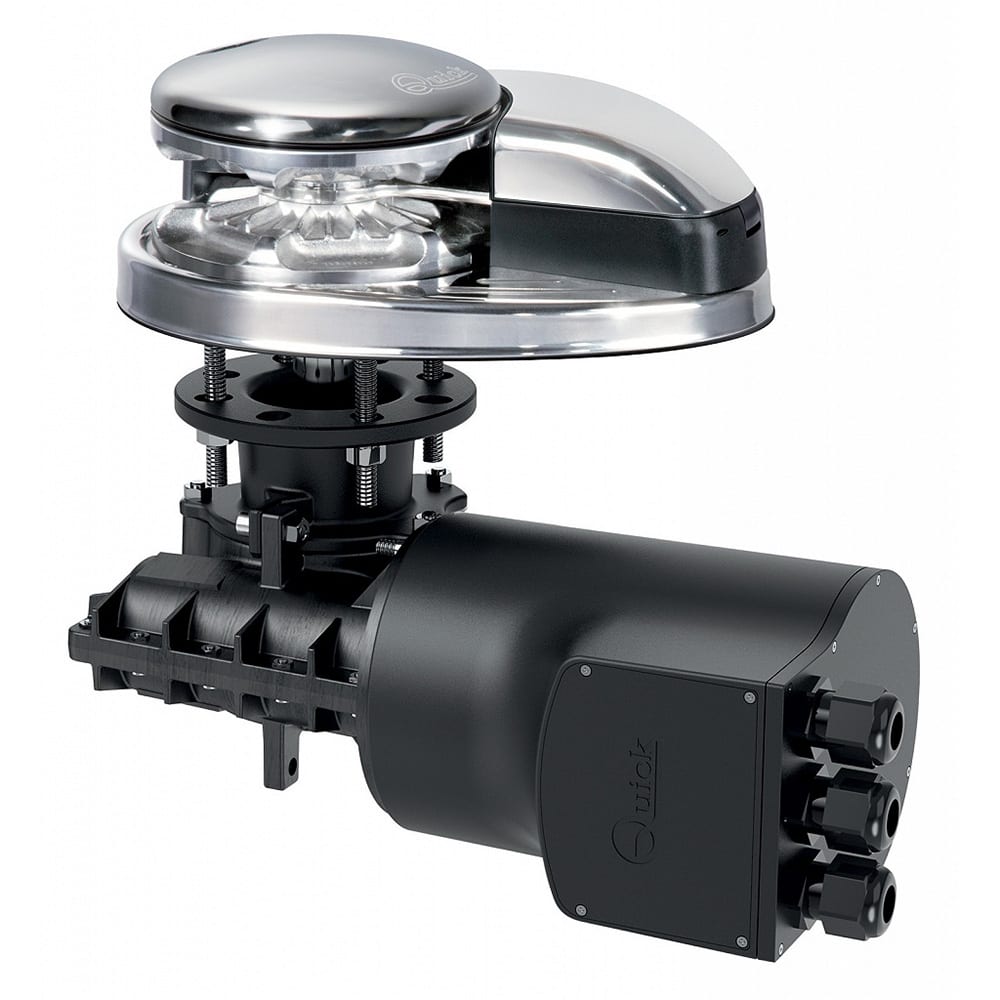

Prince DP3 Windlass - 700W, 12V, 8mm - 5/16" Gypsy - 5/8" Rope - Prewired Built

The DP3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Features:

Vertical Windlass
For boats 23- 40 ft
Includes T6315-12 Solenoid
8mm - 5/16" Gypsy
Requires 5/8" Rope
700W Motor, 12V
Stainless steel AISI 316 base
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever
Inspection lid
IP67 Motor watertight
Technopolymer gearbox

Specifications:

Motor power - 700 W
Motor supply voltage - 12 V
Maximum pull - 850 Kg / 1874 lb
Maximum working load - 250 Kg / 551 lb
Working load - 80 Kg / 176 lb
Current absorption @ working load - 90 A
Maximum chain speed - 27,4 m/min / 89.9 ft/min
Maximum chain speed @ working load - 14,4 m/min / 47.2 ft/min
Weight - 36 lb
