QUICK
Solenoid Box Kit - 150A - 12V
- Manufacturer part #
- FVSGRCT15012A00
- UPC
- 8057090079364
- Condition
- New
$395.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details

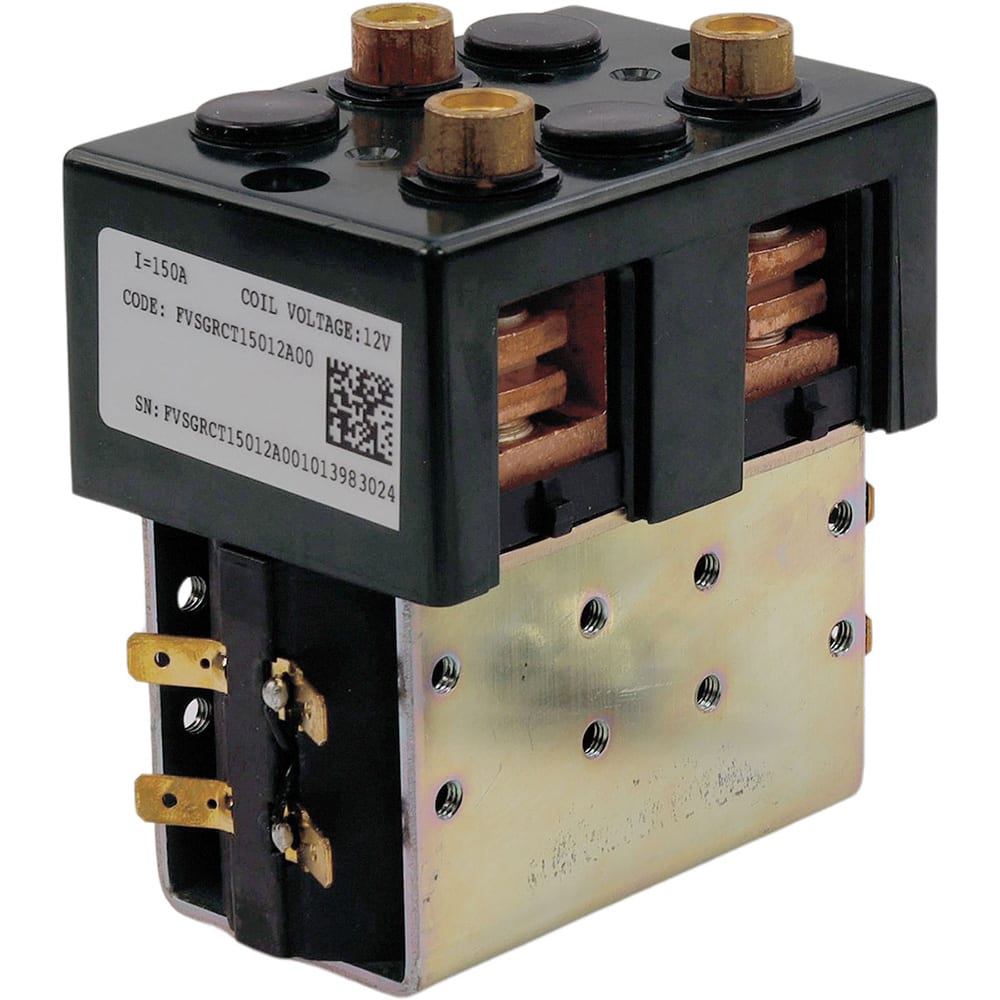

Solenoid Box Kit - 150A - 12V
Single-direction solenoid box kit, designed primarily for Quick BTQ series bow and stern thrusters.
Specifications:
- Voltage & Amperage: 12V DC / 150 Amps
- Contactor Type: Single pole, single throw (non-reversing)
- Ingress Protection: IP66 waterproof casing (excluding exposed terminals)
- Motor Capacity: Handles thruster motors up to 3.3 kW
Direct replacement for the following Quick BTQ thruster models: BTQ 125-30 / BTQ 125-40, BTQ 185-55 / BTQ 185-65 / BTQ 185-75 / BTQ 185-85
While optimized for bow thrusters, these heavy-duty solenoids are also suited to single-direction electrical marine components including:
- Anchor windlasses
- Electric capstans
- High-current winch motors
Shipping weight: 3.9 lb
