RAM

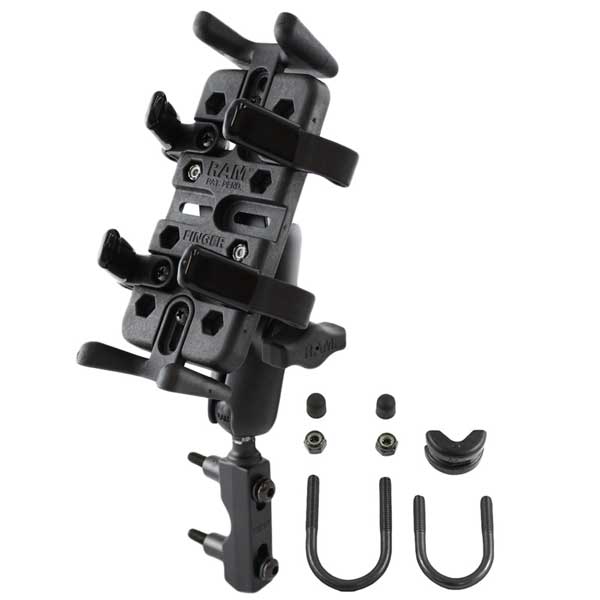

Mount Universal Finger Grip Holder Brake/Clutch Reservoir Mount
- Manufacturer part #
- RAM-B-174-UN4U
- UPC
- 793442910524
- Condition
- New
$82.99
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details
Specifications
Height Dimensions:
Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices.
Spine Plate Dimensions:
2.5W x 5.0H"
Using Short Arm Side Clamps:
Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0"
Using Medium Arm Side Clamps:
Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5"
Using Long Arm Side Clamps:
Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5"
Included with Purchase:
(1 qty) Universal Finger Grip™ holder
(1 qty) Base/ball adaptor (attaches directly to cradle)
(1 qty) Standard size double socket arm
(1 qty) Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
Hardware for mounting to either brake/clutch reservoir or rail/handlebar
Material:
High Strength Composite and Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
*The RAM-B-174-UN4U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter.The "U" in the part number reflects product packaged in poly bag. To see if the RAM-B-174-UN4U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices.
Spine Plate Dimensions:
2.5W x 5.0H"
Using Short Arm Side Clamps:
Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0"
Using Medium Arm Side Clamps:
Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5"
Using Long Arm Side Clamps:
Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5"
Included with Purchase:
(1 qty) Universal Finger Grip™ holder
(1 qty) Base/ball adaptor (attaches directly to cradle)
(1 qty) Standard size double socket arm
(1 qty) Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
Hardware for mounting to either brake/clutch reservoir or rail/handlebar
Material:
High Strength Composite and Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
*The RAM-B-174-UN4U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter.The "U" in the part number reflects product packaged in poly bag. To see if the RAM-B-174-UN4U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Shipping weight: 1.3 lb · Package dimensions: 7 × 3 × 2 in
