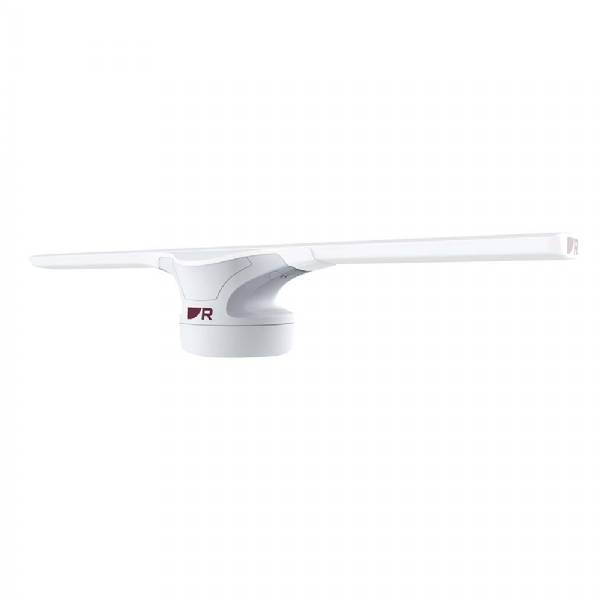

110 Watt Cyclone Pro Pedestal Only

Raymarine 110 Watt Cyclone Pedestal Only

Model: E70621

Pedestal Only for 110 Watt Cyclone

Specifications

Supply voltage (Using VCM100)	Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc / Maximum: 31.2 V dc
Power consumption (typical)	95 Watts
Power consumption (max)	195 Watts
Power consumption (standby)	28 Watts
Maximum range scale	96 nm
Boot up time	40 seconds
Standby to transmit	less than 5 seconds
Waterproof rating	IPX6
Operating temperature range	-25 degC to +55 degC (-13 degF to 131 degF)
Humidity	Up to 93% at 40 degC (104 degF)
Maximum wind speed	100 Kts
Power connection	1x Power connector
Data connection	1x RayNet connector
Transmitter frequency	9370, 9400, 9430 MHz (User Selectable)
Peak power output	110 Watts
Receiver characteristic	Linear
Receiver noise	Less than 5 dB
Pedestal
Dimensions	388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)
Weight	16 Kg

What's in the Box:

• E70621 110 watt pedestal
