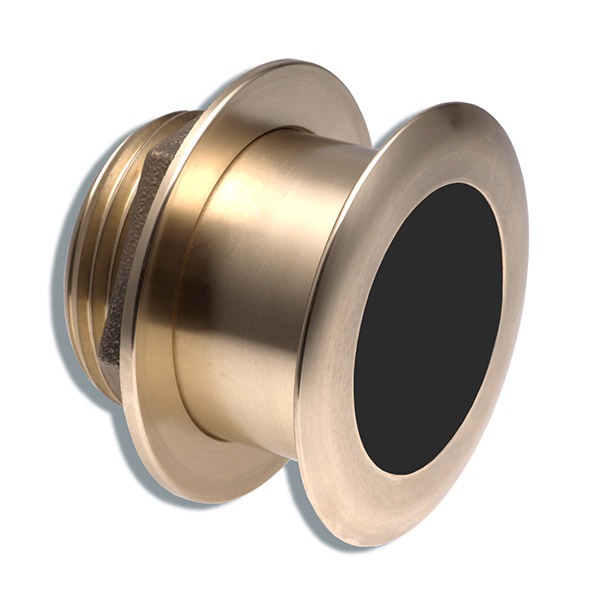

B175H-W 20° Bronze Thru-Hull Tilted Element Transducer - 1kW

B175H-W 1KW Bronze Thru Hull 20° Tilted Element

Installation: Thru Hull

Material: Urethane

Power (RMS): 1kW

Max Depth(ft): 800

Frequency (KHz): 150-250

Records: Depth and Temperature

Approved Hull Material: Fiberglass / Wood

Cable Length (ft/M): 6ft/2m

Supported deadrise: 16-24° Deadrise

ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
