RAYMARINE

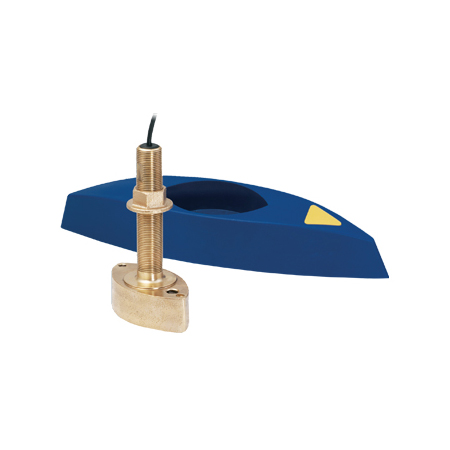

Brz Longstem Depth W/Fairing Block (B45)
- Manufacturer part #
- E26019-PZ
- UPC
- 723193250655
- Condition
- New
$324.99
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Compatible with the following instruments:
- ST70*
- ST60+
- ST290
Compatible hull material: wood and fiberglass
Cable: 45 ft cable
Hole diameter for installation: 7/8 in
Includes Fairing Block
200Khz
*Using with ST70 requires purchase of ST70 Depth Pod, sold separately.
Specifications
• Narrow Stem Thru-Hull, Bronze Housing.
Fairing is included.
• Depth and Temperature
• 50/200 kHz
• 600 Watts
• 12 m (39’) Cable
• Requires only a 22mm hole
• For use on fiberglass and wood hulls with up
to 28º of deadrise.
• Beam Width: 50 kHz—45º 200 kHz—12º
• Depth Range: 50 kHz—244m to 366m
(800’ to 1200’) 200kHz—122m to 213m
(400’ to 700’)
Fairing is included.
• Depth and Temperature
• 50/200 kHz
• 600 Watts
• 12 m (39’) Cable
• Requires only a 22mm hole
• For use on fiberglass and wood hulls with up
to 28º of deadrise.
• Beam Width: 50 kHz—45º 200 kHz—12º
• Depth Range: 50 kHz—244m to 366m
(800’ to 1200’) 200kHz—122m to 213m
(400’ to 700’)
Shipping weight: 4.8 lb
