RAYMARINE
CAM210 Day And Night IP Bullet Camera
- Manufacturer part #
- E70346
- UPC
- 723193813263
- Condition
- New
$809.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Product details

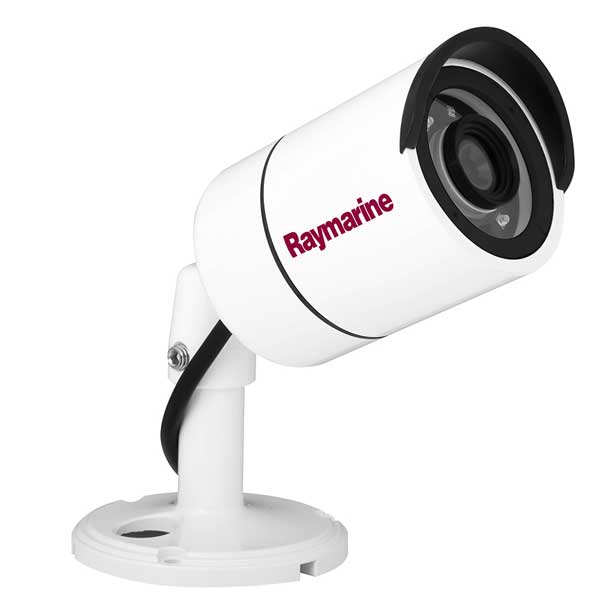

Raymarine CAM210 Day and Night IP Bullet Camera
Model: E70346UPC: 723193813263
- Plug and play integration with Raymarine MFD's running Lighthouse II or later
- Power over Ethernet (PoE) or direct 12v DC power supply
- High bright IR LEDs for operation in total darkness
- Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
- Intelligent IR technology for clear video images at night in all conditions
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
Specifications| System | |
| CPU | 32-bit ARM9 RISC CPU up to 432MHz |
| Flash/SDRAM | 128MB / 128MB |
| Camera | |
| Image sensor | 2.0 Megapixel 1/2.8 SONY progressive scan CMOS(Exmor) |
Specifications
CPU: 32-bit ARM9 RISC CPU up to 432MHz
Flash / SDRAM: 128MB / 128MB
Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
S/N Ratio: More than 50dB
Minimum Illumination: 0Lux (IR On)
IR Distance: 20M
Day & Night: ICR
Lens: 6.0mm Megapixel Board Lens
Field of View:
Diagonal = 63.6° +/- 3°
Horizontal = 53.3° +/- 3°
Vertical = 33.1° +/- 3°
Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
Resolution: Up to 1920 x 1080 (Full HD)
Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
Video Streaming:
Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264
Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
Image Setting:
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
Effects - Colour, Sharpness, Mirror / V-Flip
Security: Password protection, User access log, HTTPS encryption
Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
Power Consumption: Max. 3.3W, Max. 5.3W with IR
Net Weight: 900g
LED's: Power, Network Connection
Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
General Operation Temperature: 0°~40° Celsius(32F~104F)
Storage Temperature: -10°~50° Celsius(14F~122F)
Flash / SDRAM: 128MB / 128MB
Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
S/N Ratio: More than 50dB
Minimum Illumination: 0Lux (IR On)
IR Distance: 20M
Day & Night: ICR
Lens: 6.0mm Megapixel Board Lens
Field of View:
Diagonal = 63.6° +/- 3°
Horizontal = 53.3° +/- 3°
Vertical = 33.1° +/- 3°
Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
Resolution: Up to 1920 x 1080 (Full HD)
Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
Video Streaming:
Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264
Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
Image Setting:
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
Effects - Colour, Sharpness, Mirror / V-Flip
Security: Password protection, User access log, HTTPS encryption
Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
Power Consumption: Max. 3.3W, Max. 5.3W with IR
Net Weight: 900g
LED's: Power, Network Connection
Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
General Operation Temperature: 0°~40° Celsius(32F~104F)
Storage Temperature: -10°~50° Celsius(14F~122F)
Shipping weight: 2.3 lb
