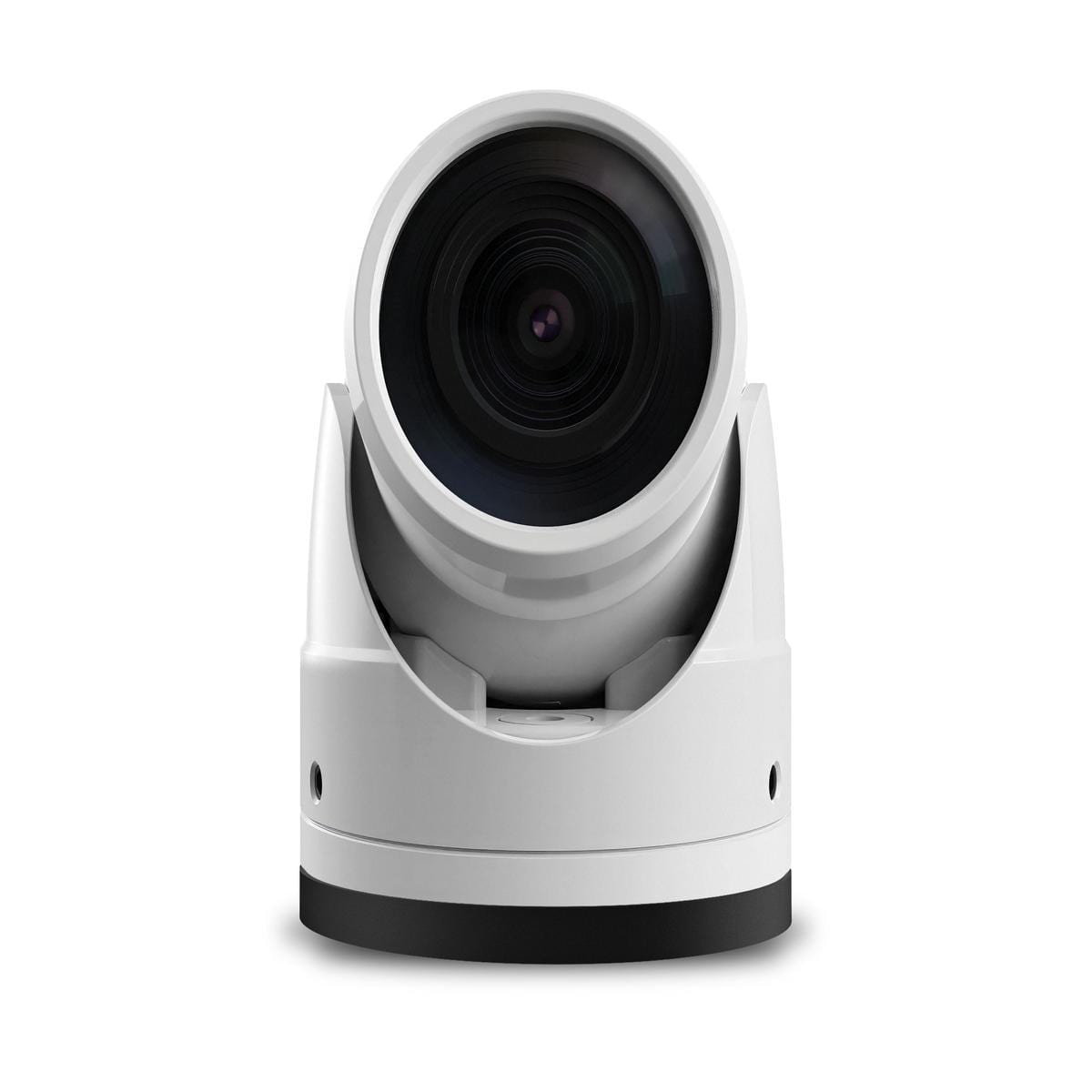

CAM400 Marine Day/Night IP Camera White

Raymarine CAM400 Day/Night IP Camera - White
Model: E70716

• High-definition video for enhanced onboard awareness and monitoring
• Integrated infrared illumination for low-light and nighttime visibility up to 33 ft (10 m)
• Ball-up or ball-down installation with simple, secure angle adjustment
• Gloss marine white finish
• Rugged IPX6/IPX7 marine housing
• Flexible power options - Power over Ethernet (PoE) or direct 12 V DC

The CAM400 is a compact day/night IP camera designed for Raymarine Axiom chartplotters. It delivers wide-angle, high-definition video in bright sun, at dusk and in low light, turning your Axiom display into an onboard video system for navigation, docking, safety and monitoring around the vessel. Built on an IP networking platform, it integrates with LightHouse 4 Axiom and LightHouse 5 Axiom 2 systems.

Paired with any Axiom 2 chartplotter running LightHouse 5, CAM400 can display configurable on-screen distance guide lines. Line spacing and angle adjust to suit your boat and camera installation, for backing into slips, approaching docks and maneuvering in tight quarters.

Combine CAM400 with an AR200 sensor and a compatible Axiom chartplotter for ClearCruise® Augmented Reality navigation, with AIS targets, waypoints, navigation aids and chart objects overlaid directly on the live camera image.

A compact, low-profile design with versatile mounting and support for Power over Ethernet or direct 12 V DC power suits both new installations and refits, above or below deck.

Specifications

Video
Day / Night	True day/night operation with automatic IR cut filter
Automatic Gain Control	Automatic image optimization in changing light conditions
Scanning System	Progressive scan
Mirror	Horizontal and vertical image flip
Video Processing	Advanced image processing with configurable WDR, noise reduction and image enhancement
Bit Rate Control	Constant Bit Rate (CBR) / Variable Bit Rate (VBR)
Compression	H.264, MJPEG
Illumination	Integrated 850 nm infrared emitter, range up to 10 m (33 ft)
Frame Rate	Up to 30 fps
ONVIF	ONVIF Profile S compliant
Sensor / DSP	Color CMOS image sensor
Field of View	Wide-angle lens (129.4° HFOV)
Power
Power over Ethernet	PoE Class 2 device (6.49 W max) (IEEE 802.3af)
Nominal Supply Voltage	12 V DC
Operating Voltage Range	10.8 to 15.6 V DC
Power Consumption	2.1 W nominal @ 12 V DC / 5 W maximum (LEDs on)
Current	Less than 420 mA (maximum) @ 12 V DC
Inline Fuse Rating	2 A
Environmental
Relative Humidity	Up to 95% at 60°C (140°F)
Waterproof Rating	IPX7
Storage Temperature	-30°C to +70°C (-22°F to 158°F)
Operating Temperature	-20°C to +60°C (-4°F to 140°F)
Physical
Dimensions	Height 80.80 mm, Width 64.5 mm, Depth 70.48 mm including lens (3.18 in x 2.54 in x 2.77 in) - maximum dimensions including base, excluding cable
Weight	0.420 kg (0.926 lbs)
Conformance
Product Markings	UKCA, RoHS, CE, Australian RCM C-Tick
Standards	RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002

What's in the Box:

• CAM400 - with integrated 1.4 m (4.8 ft) connection cable featuring a PoE (RayNet) connector, factory reset switch and direct connection
• Camera mount
• Documentation
• Camera base
• Mounting gasket (pre-fitted to camera base)
• Hex wrench (Allen key)
• Bushings (x3)
• Silicone rings (x3)
• Flat washers (x3)
• Countersunk screws (x3)
• M4 x 30 mm self-tapping mounting screws (x3)
