RAYMARINE

E12207 12v Hydraulic Linear Drive Type 2

Manufacturer part #: E12207
UPC: 091975009334
Condition: New

$3,239.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Product details

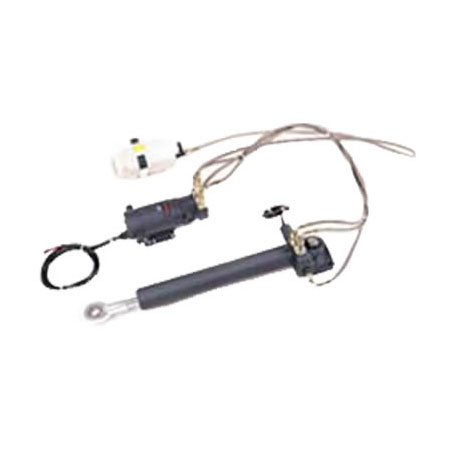

Raymarine E12207 Type 2 12v Hydraulic Linear Drive

Model: E12207

Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.

A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.

Specifications

Maximum boat displacement	22,000 kg
Peak thrust	585 kg
Maximum stroke	254 mm
Hard-over to hard-over times	10 seconds
Maximum rudder torque	1,270 Nm
Corepack used	ACU-400

Package contents

Box Dimensions:
    Length (in)       31
    Width (in)        12
    Height (in)        9
    Weight (lbs)      22

Shipping weight: 22 lb
