RAYMARINE

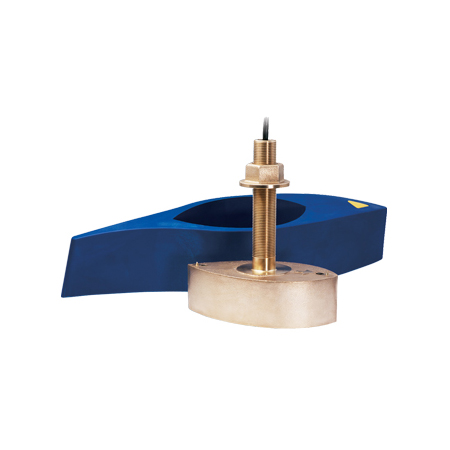

E66079 1KW Bronze Thru Hull B260 W/Block
- Manufacturer part #
- E66079
- UPC
- 723193660799
- Condition
- New
$1,649.00
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
The B260 Broadband offers improved 200Khz performance by reducing transducer "ringing"
Compatible with the following Echo Sounders:
- DSM250 and DSM300
- SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
- hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
- hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC
Compatible hull material: wood and fiberglass
Max Power: 1000 W
Frequency: 200/50 kHz
Beam Angles: 200 kHz 6 deg 50 kHz 19 deg
Cable: 30ft (10m) cable with connector
Fairing block included.
Specifications
Thru-Hull, Bronze Housing, Fairing included
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Broadband
• Separate 50 and 200 kHz ceramics
• Top performing 1 kW broadband transducer
gives you crystal clear imaging at all depths
• For use with sportfishing and commercial
fishing boats 11 m (35') and up with
fiberglass and wood hulls
• Deadrise angles up to 22º
• Broadband Ceramic Technology:
• Provides better image detail and resolution
• Distinguishes individual fish targets and fish tight
to the bottom
• Beam Width: 50 kHz—19° 200 kHz—6°
• Depth Range: 50 kHz—549m to 762m
(1800’ to 2500’) 200kHz—213m to 305m
(700’ to 1000’)
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Broadband
• Separate 50 and 200 kHz ceramics
• Top performing 1 kW broadband transducer
gives you crystal clear imaging at all depths
• For use with sportfishing and commercial
fishing boats 11 m (35') and up with
fiberglass and wood hulls
• Deadrise angles up to 22º
• Broadband Ceramic Technology:
• Provides better image detail and resolution
• Distinguishes individual fish targets and fish tight
to the bottom
• Beam Width: 50 kHz—19° 200 kHz—6°
• Depth Range: 50 kHz—549m to 762m
(1800’ to 2500’) 200kHz—213m to 305m
(700’ to 1000’)
Shipping weight: 23 lb
