RAYMARINE

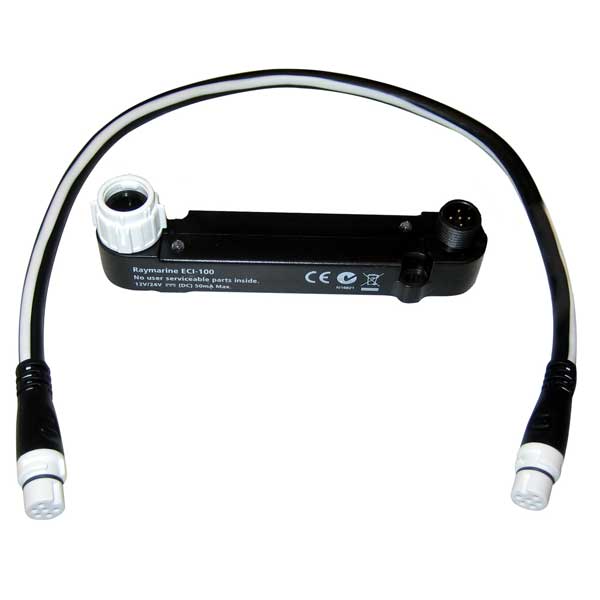

ECI100 Engine And Control Interface
- Manufacturer part #
- E70227
- UPC
- 723193785263
- Condition
- New
$267.95
In stock
Estimated to ship by Monday, October 19.
| Dimensions (L x H x D) | 109.2 x 21.35 x 30.2 mm (4.29 x 0.84 x 1.18 in) | 12 V dc |
| Operating voltage range | 10.8V to 31.2V dc | |
| 3.6W (maximum) | ||
| 10mA | ||
| 5A | ||
| 1 | ||
| -20o to +55oC (+4oF to 131oF) | ||
| -30o to +70oC (-22oF to 158oF) | ||
| 95% | ||
| IPX6 |
Specifications
The specified price is for: 1 item
ECI-100 Engine Data Parameters
The ECI-100 Universal Engine and Control Interface identifies the following parameters:
Engine speed
Engine oil temperature
Engine temperature
Engine oil pressure
Engine coolant pressure
Engine fuel rate
Boost pressure
Battery potential
Transmission oil pressure
Transmission oil temperature
Total engine hours
Fuel tank level
Trip fuel used (calculated by ECI-100)
Alternator potential
Engine torque
Engine percent load
Transmission gear
VIN (not shown on the display)
Software number (not shown on the display)
Simple Integration, Powerful Performance
The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:
Volvo Penta
Yamaha Marine (Command Link Plus only)
Caterpillar
Yanmar Marine
ECI-100 Engine Data Parameters
The ECI-100 Universal Engine and Control Interface identifies the following parameters:
Engine speed
Engine oil temperature
Engine temperature
Engine oil pressure
Engine coolant pressure
Engine fuel rate
Boost pressure
Battery potential
Transmission oil pressure
Transmission oil temperature
Total engine hours
Fuel tank level
Trip fuel used (calculated by ECI-100)
Alternator potential
Engine torque
Engine percent load
Transmission gear
VIN (not shown on the display)
Software number (not shown on the display)
Simple Integration, Powerful Performance
The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:
Volvo Penta
Yamaha Marine (Command Link Plus only)
Caterpillar
Yanmar Marine
Shipping weight: 0.6 lb
