RAYMARINE

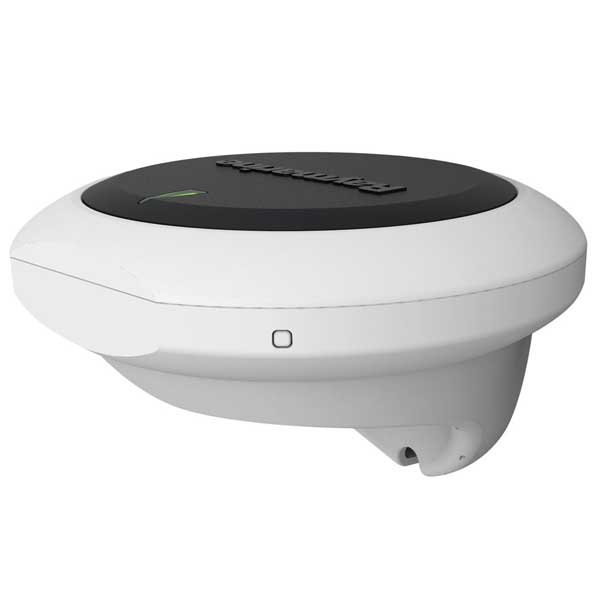

EV1 Sensor Core
- Manufacturer part #
- E70096
- UPC
- 723193768884
- Condition
- New
$728.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
| Model | E70096: EV-1 |
| Nominal supply voltage | 12 V (powered by SeaTalkng system) |
| Operating voltage range | 10.8 V to 15.6 V dc |
| Power consumption (taken from SeaTalkng system) | 30 mA |
| SeaTalkng LEN (Load Equivalency Number) | 1 |
| Sensors | 3-axis digital accelerometer 3-axis digital compass 3-axis gyro digital angular rate sensor |
| Data connections | SeaTalkng NMEA 2000 DeviceNet (EV-2 only) |
| Installation environmental | Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF) Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF) Relative humidity: max 93% Waterprrof rating: IPX 6 |
| Dimensions | Diameter: 140 mm (5.5 in) Depth (including mounting enclosure): 35 mm (1.4 in) Depth (including wall bracket): 95 mm (3.8 in) |
| Weight | 0.29 kg (0.64 lbs) |
| EMC compliance | Europe: 2004/108/EC Australia and New Zealand |
Specifications
Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
Flexible installation options. Mount above or below deck
Simple SeaTalkng connectivity to the control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions
Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
Flexible installation options. Mount above or below deck
Simple SeaTalkng connectivity to the control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions
Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
Shipping weight: 1 lb
