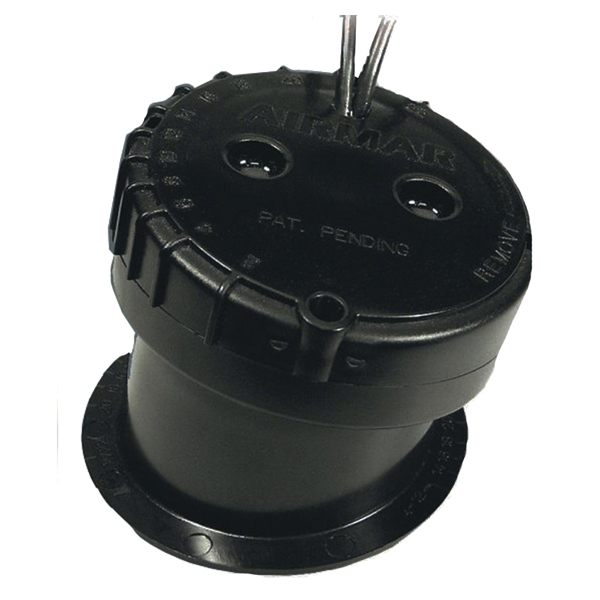

P79 In-Hull Transducer For DSM300

Compatible with the following Echo Sounders:

• SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
• hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
• hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC

Compatible hull material: fiberglass

Features:

• Max Power: 600 W
• Frequency: 200/50 kHz
• Beam Angles: 200 kHz 11 deg 50 kHz 45 deg
• Depth only.
• Can be used in conjunction with the E66019 ST69 speed and temperature sensor
• Easily adjusts to any deadrise angle up to 22 deg
• Transmits sound waves directly at the bottom so strong echoes are reflected back to the transducer
• Can be removed in seconds for servicing or storage
• Only the base piece is bonded to the hull. There is no adhesive layer under the transducer face to absorb sound energy
• Simplifies in-hull installation
• 30ft (10m) Cable
