RONSTAN

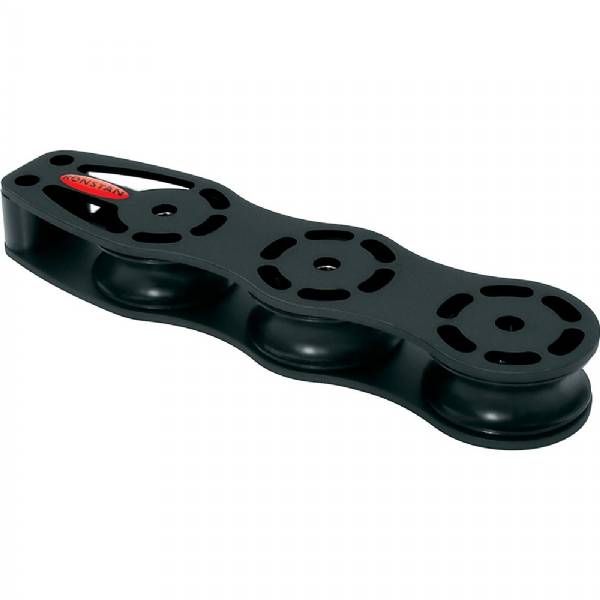

Series 40 All Purpose Deck Organizer - 3 Sheave
- Manufacturer part #
- RF41831
- UPC
- 9316800295777
- Condition
- New
$93.94
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details
Series 40 All Purpose Deck Organizer - 3 Sheave
Features:
- Lightweight design with cheek cut outs for easy bearing maintenance
- Through hub mounting for maximum strength
- All-purpose bearing system provides maximum static load capacity
- Mount with 5 x 6mm (1/4”) fasteners, not supplied
- Length - 164mm (6 15/32")
Deck organizers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organizers have alloy cheeks, flared at rope entry and exit points to minimize chafing. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.
Applications:
- Line deflection on larger yachts (depending on load and angle of deflection)
- Halyard and control line deflection on boats to 11m (36ft)
Materials:
- Cheek plates: Anodized aluminium
- U.V. stabilized Acetal sheaves
- Grade 316 stainless steel hubs
Shipping weight: 0.2 lb
