SAMLEX

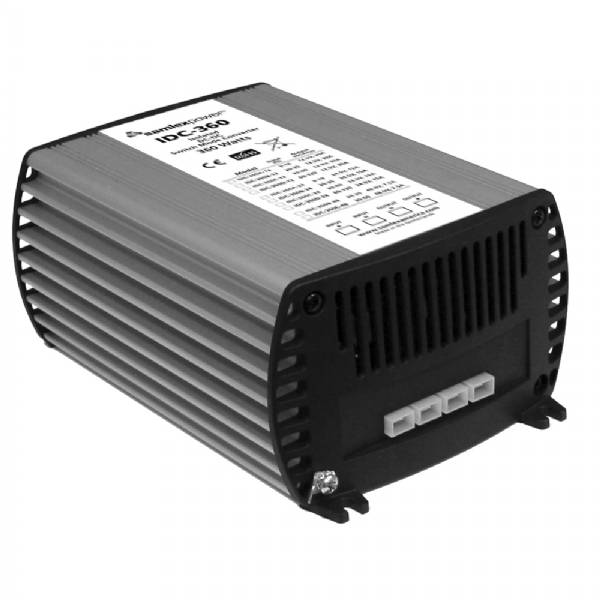

360W Fully Isolated DC-DC Converter - 30A - 20-35V Input - 12.5V Output

Manufacturer part #: IDC-360B-12
UPC: 622988067310
Condition: New

$402.60

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

360W Fully Isolated DC-DC Converter - 30A - 20-35V Input - 12.5V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.

Features:

Fully Isolated
Short Circuit Protected
Current Limited
CE Approved
2 Year Warranty

Specifications:

Input: 20-35 VDC
Output: 12.5 VDC
Watts: 360
Amps: 30 Amps
Weight: 3.1 (lbs)
Weight: 1.4 (kg)
Dimensions: 5.23 x 7.5 x 3.27 (in)
Dimensions: 132.8 x 190.5 x 83 (mm)
Safety: CE
Warranty: 2 Year Limited

Applications:

Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
12 Volt lighting systems
AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Shipping weight: 1.2 lb · Package dimensions: 7 × 5 × 3 in
