SCANSTRUT

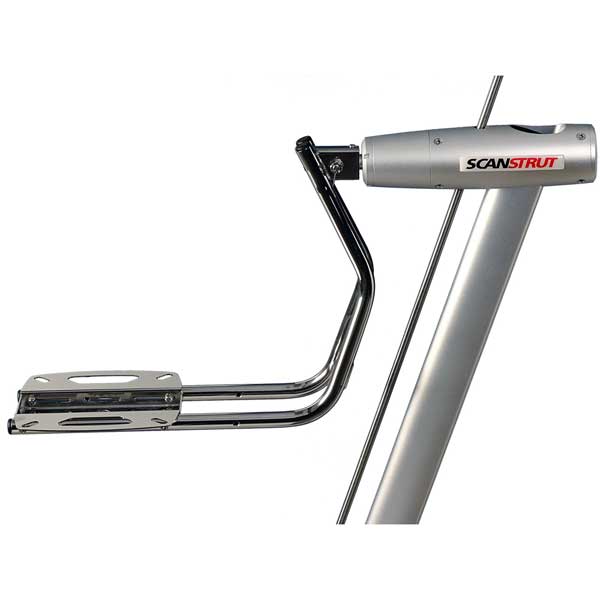

LMB-A2 Self Leveling Radar Mount - Backstay (A) - f/Sitex/Simrad Domes
- Manufacturer part #
- LMB-A2
- UPC
- 5060114790933
- Condition
- New
$1,737.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details
Self Levelling Radar Mount - Backstay - Aft (A) - Made specifically for Sitex/Simrad Domes
Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.
Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.
Features:
Dimensions:
Materials:
Kit includes
Our Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.
Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.
Features:
- Hydraulic damping to eliminate minor oscillations
- Sealed system - entirely maintenance free
- Passive system - no power required
- Lightweight head unit - reduced weight aloft
- Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
- Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted
Dimensions:
- 2.6m pole - supplied in lengths of 1.3m
- Additional 0.6m and 1.3m lengths available
Materials:
- Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht
- Marine grade 316 stainless steel cradle and base plate
Kit includes
- 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)
- 2 x 1.3m lengths of mounting pole
- 1 x Joiner piece for mounting pole
- 1 x Universal base for mounting pole
- 1 x Complete fastening pack
Specifications
Dimensions:
2.6m pole - supplied in lengths of 1.3m
Additional 0.6m and 1.3m lengths available
Materials:
Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht
Marine grade 316 stainless steel cradle and base plate
2.6m pole - supplied in lengths of 1.3m
Additional 0.6m and 1.3m lengths available
Materials:
Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht
Marine grade 316 stainless steel cradle and base plate
Package contents
1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)
2 x 1.3m lengths of mounting pole
1 x Joiner piece for mounting pole
1 x Universal base for mounting pole
1 x Complete fastening pack
2 x 1.3m lengths of mounting pole
1 x Joiner piece for mounting pole
1 x Universal base for mounting pole
1 x Complete fastening pack
Shipping weight: 25 lb
