SCANSTRUT

LMB-F2 Self Leveling Radar Mount - Backstay (F) f/Sitex/Simrad Domes

Manufacturer part #: LMB-F2
UPC: 5060114790957
Condition: New

$1,737.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

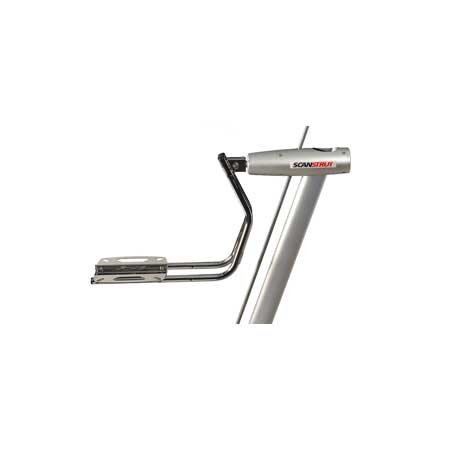

LMB-F2 Self Leveling Radar Mount - Backstay (F) for Sitex/Simrad Domes

The Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.

Features:

Hydraulic damping to eliminate minor oscillations
Sealed system - entirely maintenance free
Passive system - no power required
Lightweight head unit - reduced weight aloft
Stainless radome cradle with fine tune adjustment for backstay angle - suitable for any yacht
Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

Dimensions:

2.6m pole - supplied in lengths of 1.3m
Additional 0.6m and 1.3m lengths are available

Materials:

Finest quality machined and anodized aluminum pole and head unit - lasts the lifetime of your yacht
Marine grade 316 stainless steel cradle and base plate

Kit Includes:

1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10, and 12mm diameter backstay cables)
2 x 1.3m lengths of the mounting pole
1 x Joiner piece for the mounting pole
1 x Universal base for the mounting pole
1 x Complete fastening pack

Specifications

Dimensions:

    2.6m pole - supplied in lengths of 1.3m
    Additional 0.6m and 1.3m lengths available

Materials:

    Finest quality machined and anodised aluminium pole and head unit - lasts the lifetime of your yacht
    Marine grade 316 stainless steel cradle and base plate

Package contents

1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)
2 x 1.3m lengths of mounting pole
1 x Joiner piece for mounting pole
1 x Universal base for mounting pole
1 x Complete fastening pack

Shipping weight: 25.8 lb
