SCANSTRUT
LMM-2 Self Leveling Radar Mount
- Manufacturer part #
- LMM-2
- UPC
- 5060114791169
- Condition
- New
$1,093.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Self Levelling Radar Mount - Mast
Devices Compatible with LMM-2 Self Levelling Radar Mount
Furuno - 1621, 1622, 1623, 1715, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18"), NavNet (24")
Humminbird - AS 21RD4KW
Interphase - Mini RE-1, RE-8, RE-9
JRC- 1000, 1000mk2, 1066, 1500, 1500mk2
Koden - 2kW 12", 4kW [RB715A]
Lorenz - 2kW
Lowrance - LRA-1800 / RB714A / DX42
Navman - 8000 Series [8084/8120] 18"
Nobeltec - 2kW (20")
Northstar - M series/8000i (18")
Seiwa - SWR-1, SWR-8,SWR-9
Simrad - GB40 / NX40/45 / NSE8/12 / RB712A / DX42S
Sitex - MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066
Techmarine - T-72.01, T-72.02, T-72.04

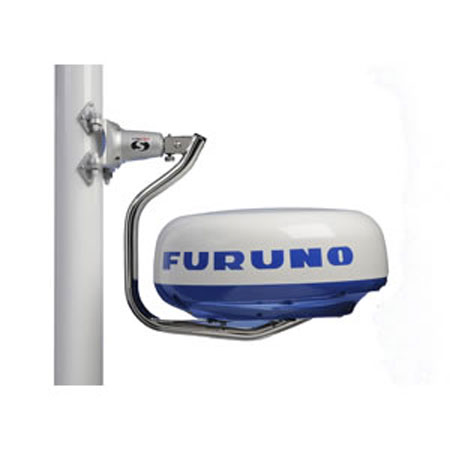

Our Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.
Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.
Features
- Hydraulic damping to eliminate minor oscillations
- Sealed system - entirely maintenance free
- Passive system - no power required
- Reduced weight aloft - complete system weighs only 3.4 kg
- Easy upgrade from fixed mast mount - same mounting footprint as SC20 & M92722
- Attached to mast by four swivel ffet - matches the profile of any mast
- 12 point fixing - highest quality monel rivets
- Compact mount - radar extends only minimum distance from front of mast
Materials
- Finest quality machined and anodised aluminium mast adapter
- Marine grade 316 stainless steel cradle and base plate
Kit includes
- 1 x Levelling mount
- 1 x Mast Adapter
- 1 x Complete fastening pack
Specifications
Compatible Units
- Furuno 1623/1715/1824/1724/1734/1832/1834/NavNet
- Lowrance LRA-1800
- Northstar M series/8000i (18" 2kW)
- Simrad NX40/45 (18" 2kW)
Package contents
6"H x 16"W x 16"L
Kit includes
- 1 x Levelling mount
- 1 x Mast Adapter
- 1 x Complete fastening pack
Shipping weight: 9.3 lb
