SCANSTRUT

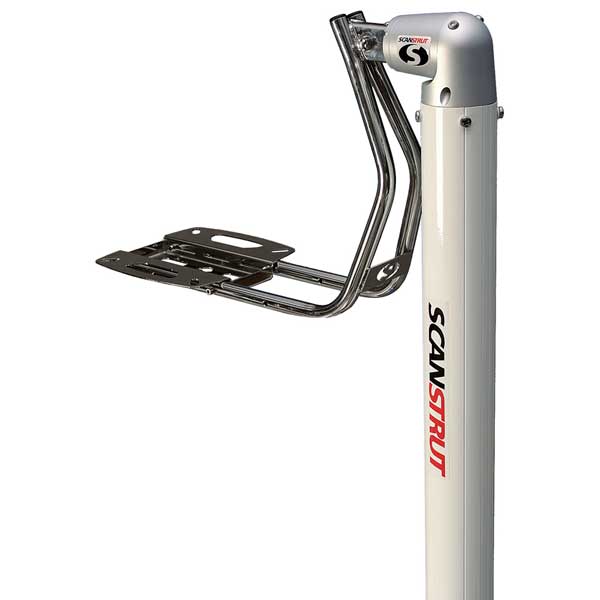

LMP-2 Self Leveling Pole Radar Mount - Furuno & Sitex 2kW & 4kW Domes

Manufacturer part #: LMP-2
UPC: 5060114790322
Condition: New

$2,332.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Self Levelling Radar Mount - Pole

Our Self-Levelling Pole Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features

Sealed system - entirely maintenance free
Universal adjustable base able to rotate through 360° and angle from horizontal all the way to vertical
Supplied with two support modules - a deck strut and rail stand off for maximum fore / aft and sideways support
Fits to angled decks, narrow swimming steps and steeply sloping transoms
Unique pole extrusion with two cable channels with cover strips to hold cables in place
Easily removed for racing or winter storage, leaving just low profile deck on deck
Existing SC100 Pole Mount installations can be upgraded to self levelling with our upgrade kit

Dimensions

2.5m / 8.3' pole
3" diameter pole
Base diameter of just 80mm / 3.1"

Materials

Finest quality machined and anodised aluminium head unit ? lasts the lifetime of your yacht
Marine grade 316 stainless steel cradle and base plate
Marine grade 6082 aluminium pole - polyester powder coated for a durable and gloss white finish

Kit includes

1 x Pole (complete with 2 x cable cover strips)
1 x Adjustable base
1 x Levelling head unit and cradle with plate
1 x 1200mm / 3.9' deck strut
1 x Rail stand off for 25mm / 1" rail

Package contents

1 x Pole (complete with 2 x cable cover strips)
    1 x Adjustable base
    1 x Levelling head unit and cradle with plate
    1 x 1200mm / 3.9' deck strut
    1 x Rail stand off for 25mm / 1" rail

Package contents
