PA1200-3 Power Assist Unit 12/24v 15ft Harness

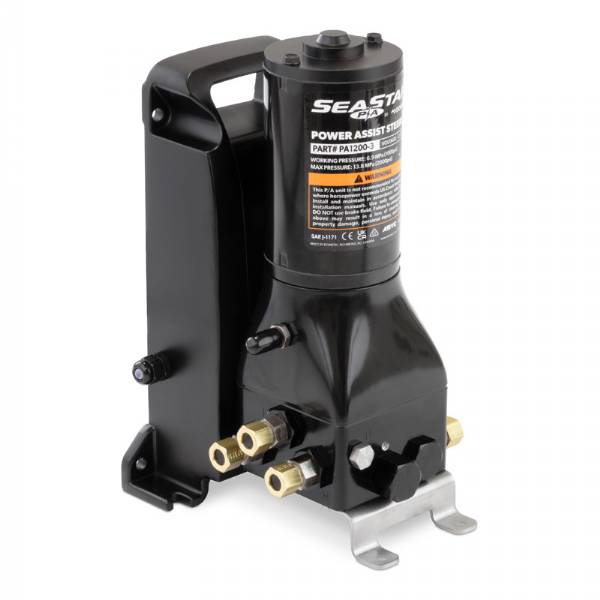

Seastar PA1200-3 12vDC Power Assist Pump with 15ft Harness

Model: PA1200-3

• ORB Fittings
• Dramatically reduces steering effort in heavy or high torque applications
• Easy install. Wall or Floor mount
• OEM or retro-fit
• Simple add-o to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
• Compatible w/ power purge system
• Return to manual in failure mode
• Suitable for boats w/ multiple engines and rudders, multiple steering stations, and autopilots
• Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved

Specifications

Voltage	12V
System Pressure	1000 psi MAX
Current Draw	40 A MAX, 60 A Peak (1 A System Electronics)
