Eagle Ray Light Bar Dual Optics Black Housing 12/24v

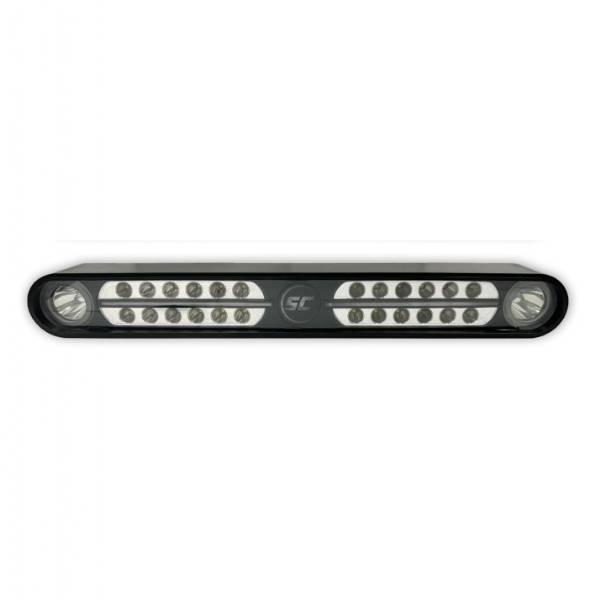

Shadow Caster Eagle Ray High Brightness Light Bar - Black Housing

Model: SCM-EAGLE-RAY-BK

• LASER FEATURES
• Automotive grade laser-driven white lights
• Blue halo illumination around optics indicate power state
• Adjustable 5-100 deg beam angle control with a switch or MFD interface
• FLOOD FEATURES
• 24 bright white LEDs
• Blue accent light strips indicate brightness level
• 60 deg beam angle
• Adjustable brightness control with a switch or MFD interface

Utilizing automotive lighting technology and novel beam shaping optics, Shadow-Caster has created the Eagle Ray - a unique light bar with a combination of focused laser-driven white light beams and a wide 60 deg LED flood array to efficiently light your way.

The focused white lights are ideal for long-distance viewing and penetrating fog, rain, and mist. The beam angle and brightness are adjustable with a push button or the Shadow-Caster(R) NMEA 2000 Light Commander interface.

Specifications

Lumens	20,000
Housing	Billet Aluminum housing
Voltage	10-30V input
Current	16.5A current draw at 12V DC
Dimensions	2.5 in H x 20 in W x 5.4 in D [65.3 x 506.5 x 136.9mm]
