SI-TEX

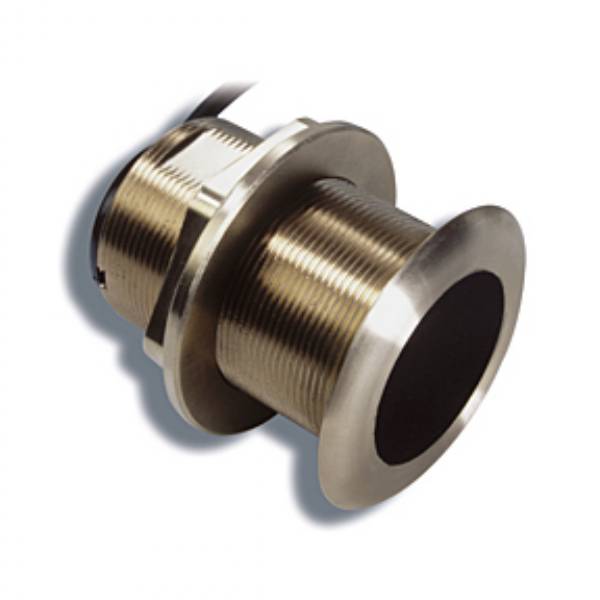

B60-20CX 50/200 600W 20D Tilted Element Depth/Temp
- Manufacturer part #
- B60-20
- UPC
- 010407320625
- Condition
- New
$370.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Product details
Features
- Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
- Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Bronze or stainless steel housings available
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
| 50/200 kHz-A | ||
| Number of Elements and Configuration | ||
| Beam Width (@-3 dB) | 45 deg | 12 deg |
| RMS Power (W) | 600 W | 600 W |
| TVR | 155 dB | 164 dB |
| RVR | -174 dB | -184 dB |
| FOM* | -31 | -21 |
| Q | 28 | 31 |
Shipping weight: 2 lb
