SIMRAD
HS65 GNSS Compass with Flat Mount
- Manufacturer part #
- 000-16235-001
- UPC
- 9420064132614
- Condition
- New
$1,349.99
In stock
Estimated to ship by Monday, October 19.
Free 2-day shipping (48 states)
Product details

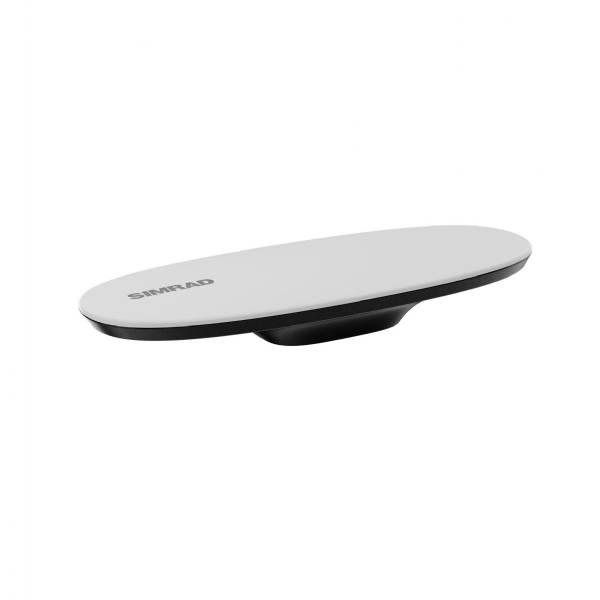

Simrad HS65 GNSS Compass with Flat Mount
Model: 000-16235-001
- Heading accuracy without the restriction of magnetic interference to account for.
- Heading Accuracy of <2° RMS 10Hz ideal for Autopilot and MARPA applications. *<90seconds cold start
- Dead Reckoning for heading up 3 minutes following loss of satellite data.
- Position <1 Meter 10Hz
- Pitch/Roll Accuracy <1.5° RMS
- Sleek design
- Backup magnetic compass with <3° RMS**
- Heave <30CM RMS
- Supports GPS, GLONASS, Galileo, BEIDOU, QZSS1 Constellation options with SBAS
- Options for Flush, Raised or Pole mount
- 640mm/2ft NMEA2000 Fly-lead
- Low profile mounting adaptor for various installation types.
- Low Profile Pole Mount
Specifications
| GNSS Constellations ? | GPS, GLONASS, Galileo, BeiDou, QZSS? |
| SBAS tracking | 2-channel, parallel tracking (WAAS, EGNOS, |
| Position accuracy (no SBAS)? | 1.5 m RMS (no SBAS) |
| Heading accuracy, static/dynamic (RMS) ? | <2° (RMS)? |
| Heading dead reckoning (DR) deviation per minute? | 2°/min? (up to 3 minutes) |
| Pitch/roll accuracy, static/dynamic (RMS)? | 1.5° (RMS) ? |
| Heading accuracy, magnetic post 3 min DR ? | <±3° TRUE |
| Heave accuracy, dynamic (RMS)? | 30cm ? |
| Update rate? | 10Hz? |
| Rate of turn | 500°/s maximum |
| Time to position fix | 25 s typical |
| Time to Heading Fix (GNSS) | 10 s typical (after you have valid position) |
| Compass safe distance | 0.5 m |
| Power | |
| Input voltage | 9—16 V DC |
| Power consumption | 1.6 W (multi-GNSS, typical continuous draw at 12 V) |
| Load equivalency number (LEN) | 3 |
| Power isolation | Isolated to enclosure |
| Reverse polarity protection | Yes |
| Connector | NMEA 2000® Micro C |
| Other | |
| Weight (no mount) | 0.85 kg (1.87 lb) |
| Operating temperature | —25°C to + 70°C (—13°F to +158°F) |
| Enclosure | IPX6 and IPX7 |
What's in the Box:
- HS-65 Compass
- NMEA2000 T-Joiner
- Flat Mount
Shipping weight: 3.9 lb
