RS20S VHF With DSC

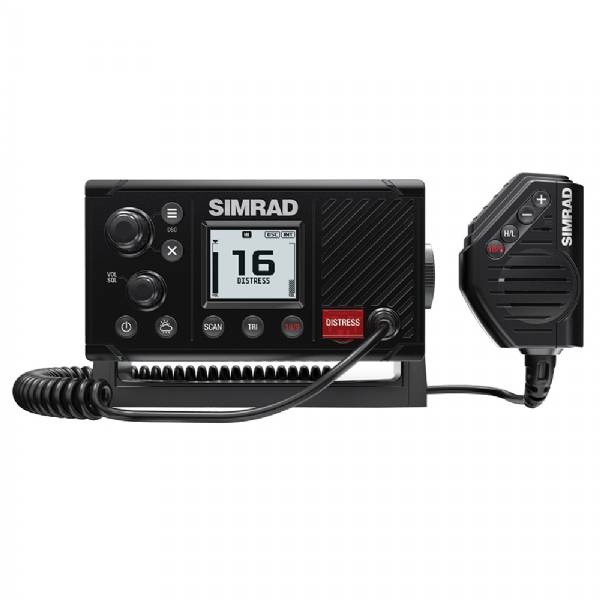

Simrad RS20S VHF With DSC

Model: 00014491001

• Built in GPS Antenna
• Receive GPS data from a compatible GPS unit: SMA connector for optional external GPS antenna (000-13613-001)
• Replaces the current RS12 entry level VHF
• NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD's
• NMEA0183 connectivity
• NMEA0183 connectivity
• New front mountable mechanical design for easy installation
• Low profile design to align with style of Simrad MFD's
• Full inbuilt country specific channel banks
• no requirement for LC programming or cloning

Specifications

Frequency Range: Transmit	156.025?157.425 MHz
Frequency Range: Receive	156.050?163.275 MHz
Number Of Channels	US / INT
Oscillate Mode	PLL
Modulation	FM(16KOG3E) DSC(16K0G2B)
Channel Spacing	25KHz
Frequency Stability	±5 PPM
Normal Working Voltage	+13.6 V DC
Minimum operating Voltage	=10 V DC
Low battery detect Voltage	10.5 ± 0.5 V DC
Digital Selectivity Calling (DSC)	Class D
Intermediate Frequency : 1st	38.85/21.7 MHz
Intermediate Frequency : 2nd	450 KHz
Sensitivity : 12dB SINAD	=-6 dBuV(EMF)
Squelch Sensitivity: at tight	= 6 dBuV(EMF)
Adjacent Channel Selectivity	=70 dB
Intermodulation Response	=68 dB
S/N at 3KHz Dev.	=40 dB
Audio Output Power At THD 10%	=2.5 W
Audio Distortion	=10 %
Audio Response	+1 to -3dB of 6dB/octave from 300hz to 3kHz dB
Current Drain : Max Audio Power	=1.5 A
Current Drain : Stand-By	=0.5 A
2ND RX Sensitivity For 12dB SINAD	=0 dBuV(EMF)
2ND RX bit error ratio@-107dBm	= 10-2
Frequency error	=±1.5KHz
RF Power	Hi23W ± 2W :Lo 0.8W ± 0.2W Hi23W ± 2W :Lo 0.8W ± 0.2W
Maximum Deviation Maximum Deviation	=± 5 KHz
S/N at 3KHz Dev.	=40 dB
Modulation Distortion ±3KHz	=10 %
Audio Response at 1KHz Dev.	+1 to -3dB of 6dB/octave from 300hz to 3KHz
Spurious/Harmonic Emissions: Hi/LO	=0.25uW
Modulation Sensitivity	=15 mV
Current Drain At 12V DC	Hi Power =6A: Lo Power =1.5A
DSC TX deviation at 1.3K	2.6±0.26 KHz
DSC TX deviation at 2.1K	4.2±0.42KHz
ATIS TX deviation at 1.3 KHz	1.3±0.13 KHz
ATIS TX deviation at 2.1 KHz	2.1±0.21 KHz

What's in the Box:

• RS20S VHF
• Suncover
• Mounting Bracket
• Mounting Bracket Knobs
• Fist Mic Clip
• Flush Mount Kit
