SIMRAD
SG05 Yamaha Helm Master
- Manufacturer part #
- 000-11286-001
- UPC
- 9420024128152
- Condition
- New
$2,267.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Product details
Simrad SG05 Autopilot Kit For Yamaha Helm Master
Model: 000-11286-001UPC: 9420024128152
- Helm Master is the Electronic steering and control system for Yamaha outboards.
- Outboards can be controlled independently allowing the boat to rotate on the spot or dock sideways.
- Fully integrated with your Simrad Navigation system via NSS, NSE, NSO.
- Control the SG05 Autopilot directly from your MFD
- All the modes you’d expect from a Simrad Autopilot: Auto, Nav, NoDrift, FollowUp.
What's in the Box:
- SG05
- Yamaha Gateway
- PRECISION-9 COMPASS
- SimNet to Micro-C (male) 1.6'
- N2K-T-RD - Micro-C T-connector
Specifications
Vessel Application Powerboats with Yamaha Helm Master
Steering Type Yamaha Helm Master
Control Type System requires control head (AP24, AP28, or MFD)
Processor SG05
Rudder Feedback Provided by Helm Master system
Compass RC42 Rate Compass
Drive Unit Uses Helm Master system
Remote Options Multi-station using either AP24 or AP28 heads, MFD, hand remote, joystick, or steering lever
Interface SimNet (NMEA 2000)
Dimensions N/A
Warranty Two years
Steering Type Yamaha Helm Master
Control Type System requires control head (AP24, AP28, or MFD)
Processor SG05
Rudder Feedback Provided by Helm Master system
Compass RC42 Rate Compass
Drive Unit Uses Helm Master system
Remote Options Multi-station using either AP24 or AP28 heads, MFD, hand remote, joystick, or steering lever
Interface SimNet (NMEA 2000)
Dimensions N/A
Warranty Two years

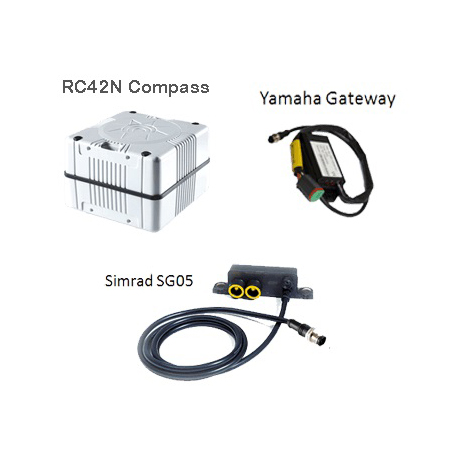

Package contents
SG05 Simnet Computer
RC42 Rate Compass
Yamaha Gateway
Simnet to Micro-C (male) converter cable
2 ea. Micro-C "T" connectors
Shipping weight: 3.3 lb
