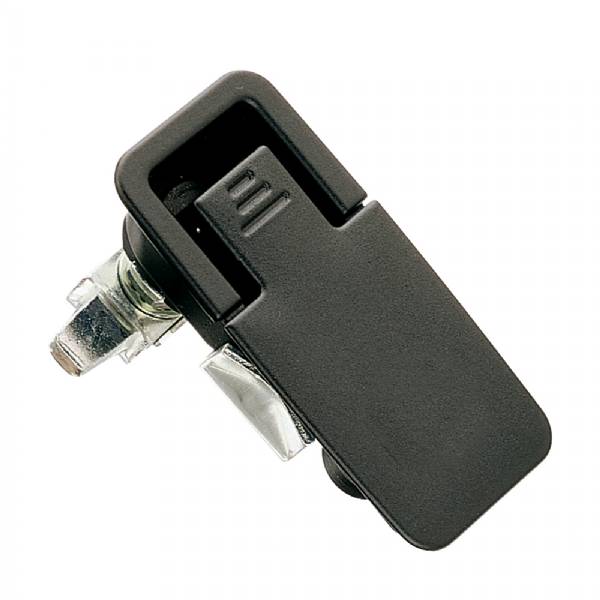

Compression Latch Lift & Turn - Flush - Adjustable

Compression Latch Lift & Turn - Flush - Adjustable

The composite Lift & Turn latch is a light- to medium-duty latch, utilizing engineering plastic in its major components to reduce weight yet maintain excellent strength. When the lever is in the upright position, it rotates 360° to move the cam behind the support in any one of three 90° positions. Once in place, the lever closes flush with the housing, providing 5 mm of axial pull, locking the device with an over-center action.
The latch is secured into a panel by a mounting bracket that adjusts to various thicknesses. Snap-in installation is provided for 5 mm thick panels. By using cams of various off sets, different grip ranges are easily accommodated.

Features:

• Broad Application Range - Latch can be fi tted to panel range 0.5 mm – 9.0 mm and has a grip range of between 10.5 mm – 49.4 mm
• Double Action Latching & Compression - Allows secure fastening of doors and panels which contain gaskets and seals
• No Adjustments Required When Fitted - Fixed cam design prevents incorrect grip setting
• 4 Cam Orientation Settings - Cam may be fitted at 90° / 180° / 270° / 360° to the latch body center line, allowing for a wide variety of mounting positions
• Robust Polyamide Construction - High strength nylon is used in the main components to ensure a durable product. The material has a V2 flammability rating to UL94

Typical Applications

• Telecoms base station doors & side access panels
• Electrical switchgear cabinets
• Computer server racks & enclosures
• Games machine doors & panels
• HVAC control equipment enclosures
• Storage lockers on stations/building sites
• Cupboards/lockers on trains/boats/commercial vehicles
