VERATRON

GO GPS PLUS Receiver

Manufacturer part #: B00041701
UPC: 7640178729445
Condition: New

$307.26

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

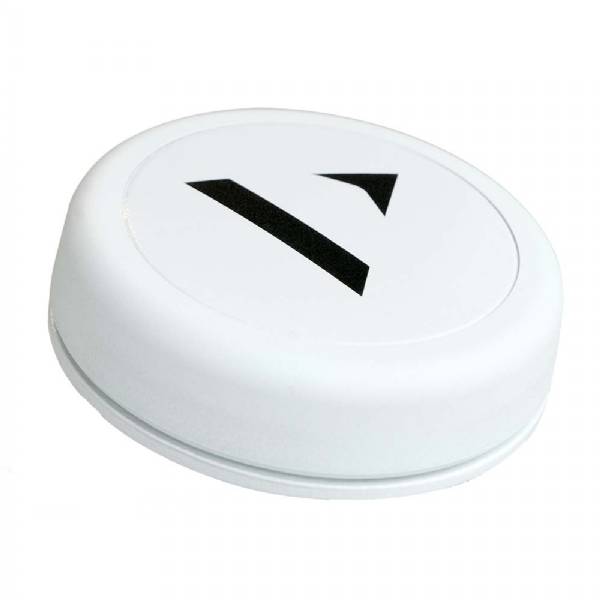

GO GPS PLUS Receiver

All your boat’s data is close to your fingertips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions. One of the smallest GPS receivers available.

The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data.

The "Plus+" variant expands the device with a Bluetooth Low Energy interface which allows you to visualize all the vessel data on your portable devices like smartphones or tablets.

Features:

72 channel receiver
Fast cold-start position fix
Compatible with OceanLink 52MM Bezels
10Hz update rate
Up to 3 concurrent GNSS systems (GPS, GLONASS, and GALILEO)
SBAS – WAAS/EGNOS/MSAS/GAGAN supported
NMEA 2000 standard PGNs transmitted for position, time, speed, and heading
Front-end SAW band-pass filter for enhanced immunity against electrical noise
Interchangeable bezel option

Technical Specifications:

Update Rate: Up to 10Hz using concurrent GNSS, up to 18Hz using single GNSS
Position Fix Time: 26 second cold-start, 1 second hot start
Tracking Sensitivity: -165dBm
Position Accuracy: 2.5m
Velocity Accuracy: 0.05m/s
Heading Accuracy: 0.3°
Water Resistance: IPX7
Dimensions (D x H): 60.7 mm x 18.9 mm
Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required
Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup

In the Box:

GO GPS Plus Receiver
Instructions Manual

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Shipping weight: 0.5 lb
