VERATRON

Intelligent Battery Sensor - 12V - 500A

Manufacturer part #: B00084201
UPC: 7640178729704
Condition: New

$196.92

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

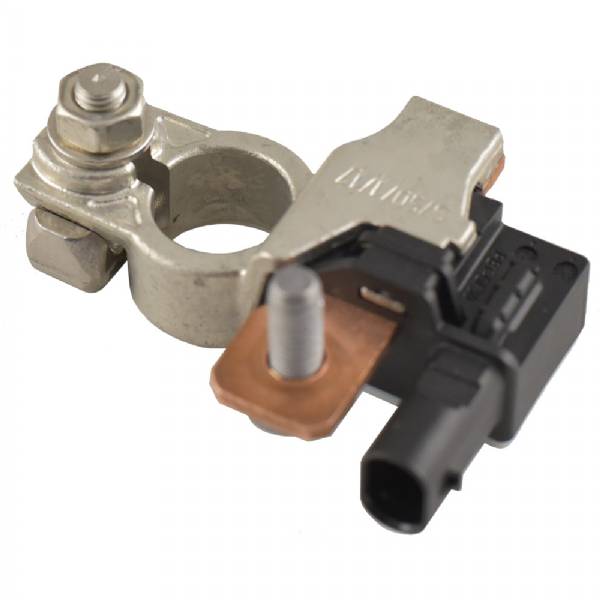

Intelligent Battery Sensor 12V - 500A

After the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current, and temperature parameters and internally calculates the State Of Charge, State Of Health, and Time Remaining accordingly.

Technical Specifications:

Operating Voltage - 6-16.5V
Operating Current (Permanent) - ± 155A
Max Current - ± 1500A (500 ms)
Power Consumption - ≤ 15 mA (normal mode), ≤ 120 μA (sleep mode)
Max Battery Capacity - 249 Ah
Operating Temperature - -40°C to 155°C

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Shipping weight: 0.25 lb
