WICHARD
Self-Locking Long D Shackle - Diameter 4mm - 5/32"
- Manufacturer part #
- 01211
- UPC
- 768536012118
- Condition
- New
$16.90
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
Product details

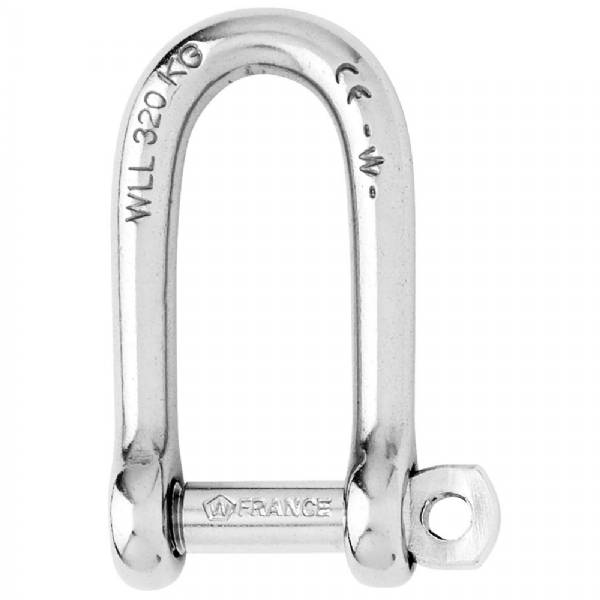

Self-Locking Long D Shackle - Diameter 4mm - 5/32"
Features:
- Self-locking long shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications
- CE Marking and batch number
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 300
- Breaking load (lb) 1540
- Weight (lb) 0.018
Dimensions (see 2nd image):
- A (inch) 55/64"
- B (inch) 5/16"
- C (inch) 5/32"
- D (inch) 5/16"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- F (inch) 1-17/64"
- G (inch) 53/64"
Shipping weight: 0.1 lb
