808-8040-10 Remote Panel F/TC3 Chargers

Xantrex 808-8040-10 Remote Panel F/TC3 Chargers

Model: 808-8040-10

• Parallel stack chargers
• Adjust charger output
• Read battery bank statuses
• Activate quite mode
• FCC Class B

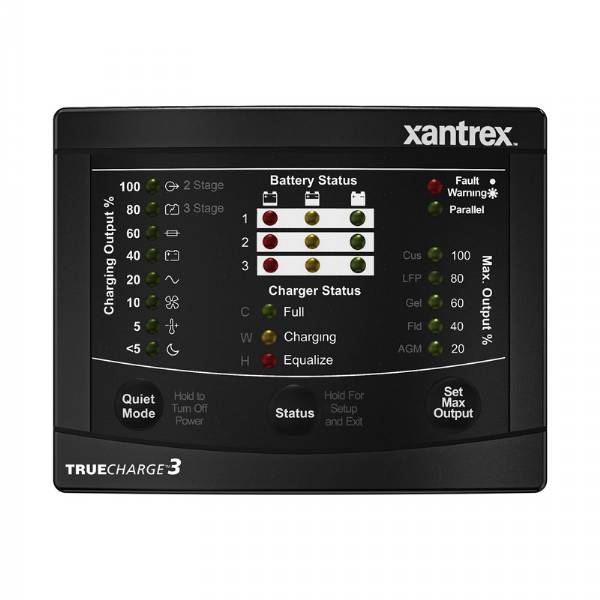

This full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the charger's onboard display. The Remote Panel reads like a fuel gauge and displays critical information on charging of battery banks. It is very easy to install, read and operate, connecting with the battery charger through the included telephone cable. The TRUECharge3 Remote Panel is designed for use with TRUECharge3 Battery Chargers.

Specifications

Electrical Specifications
Display	LED
Off-state battery drain	< 40 mA
On-state power consumption	< 150 mA
Mechanical Specifications
Dimensions (L x W x H)	4.56 x 1.75 x 3.5 in (114.64 x 44.39 x 89.64 mm)
Weight	0.44 lb (200 g)
Environmental Specifications
Operating temperature range	32-140 degF (0-60 degC)
Storage temperature range	-40-176 degF (-40-80 degC)
