Solar PWM 30A Charge Controller

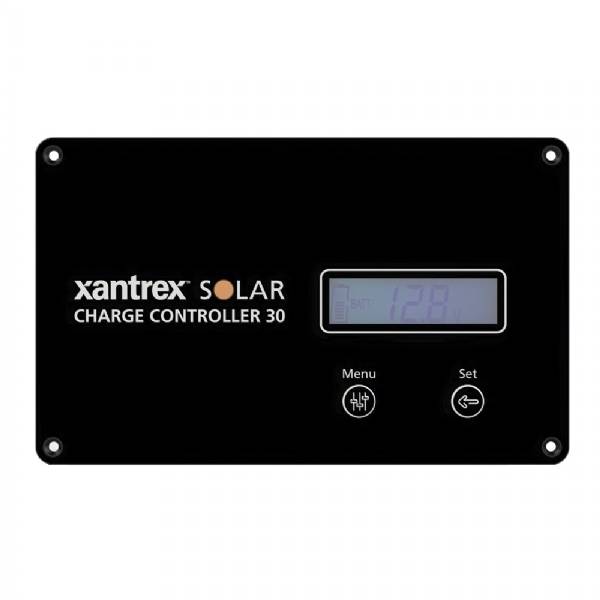

Xantrex PWM Charge Controller

Model: 709-3024-01

• Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
• Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
• Best-in-class PV array and battery protections
• Aesthetic flush-mount industrial design

Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.

The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.

Specifications

Nominal System Voltag	12/24V Auto-Detect
Battery Input Voltage Range	8V to 32V
Rated Charge Current	30A
Max. PV Short Circuit Current	30A
Max. PV Open Circuit Voltage	50A
Battery Types Supported	Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO )
elf-consumption	12V: 4.2mA 24V: 2.6mA
Temperature Compensation Coefficient	-3mV/ degC/2V
Grounding	Common negative
ENVIRONMENTAL DATA
Storage Temperature Range	-30 degC to 80 degC
Operating Temperature Range	-20 degC to 55 degC (fully rated output)
MECHANICAL DATA
Dimensions	7.03 W x 4.31 in H x 1.86 in D (178.5mm W x 109.4mm H x 47.3mm D)
Max. Cable Size (PV Array and Battery	0.63in2 (16mm2) / 6AWG
Recommended Cable Size	0.24in2 (6mm2) / 10AWG or larger

"
