Remote Solenoid Battery Switch, Auto Release, 12V

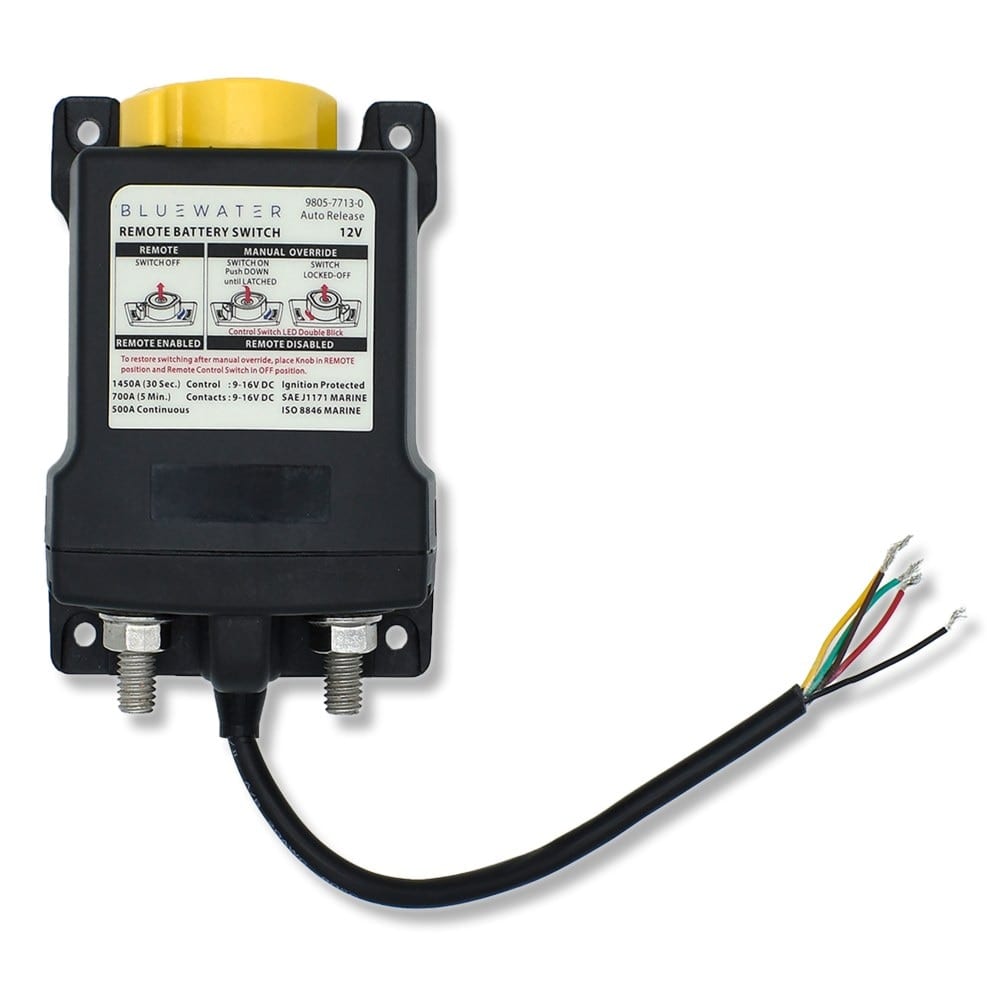

Bluewater Remote Solenoid Battery Switch, Auto Release, 12V

Model: 9805-7713-0

• Remote Battery Control — Turn battery power on or off from a helm or panel switch, ideal for long cable runs.
• Low Current Draw — Auto-release design draws very low continuous current.
• LED Status — Built-in indicators show whether the switch is on or off.
• Manual Override — Control knob with Lock Off function for emergency access.
• Heavy-Duty Studs — 3/8"-16 tin-plated copper studs with silver alloy contacts.

The Bluewater auto-release remote solenoid battery switch is a heavy-duty marine solenoid for remote activation of power circuits and battery isolation from a remote panel.

It can be controlled by an SPDT or SPST ON-ON switch, and the manual override provides emergency access.

Specifications

Type	Auto-release remote solenoid
Control Voltage	9–16VDC (12V systems)
Current Draw	Very low continuous current
Remote Control Switch	SPDT or SPST ON-ON
Terminal Studs	3/8"-16 tin-plated copper
Contacts	Silver alloy
Status Indicator	LED
Manual Override	Yes, with Lock Off
