Remote Solenoid Battery Switch, Latching, 12V

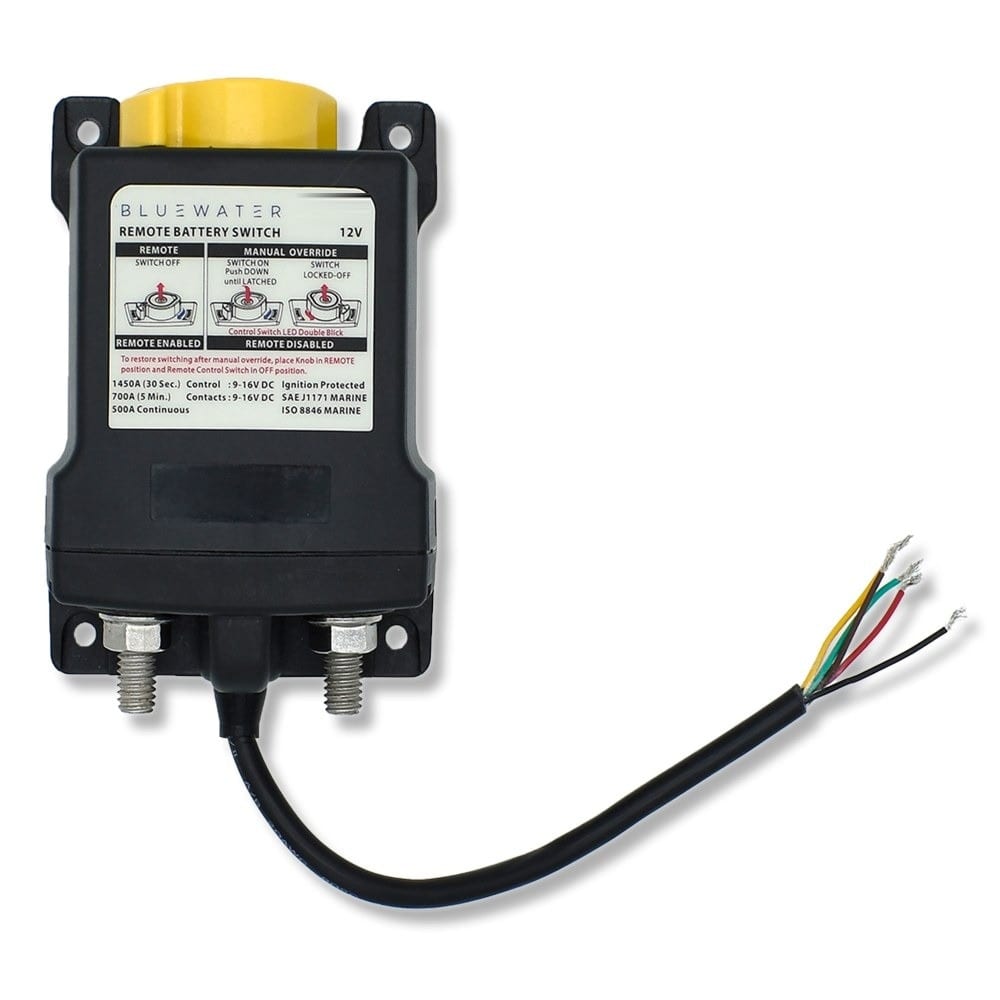

Bluewater Remote Solenoid Battery Switch, Latching, 12V

Model: 9805-7700-0

• Remote Battery Control — Turn battery power on or off from a helm or panel switch, ideal for long cable runs.
• Zero Current Draw — Latching design draws no current in either the ON or OFF state.
• Manual Override — Built-in control knob operates the switch with or without power, with a Lock Off function.
• Heavy-Duty Studs — 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance.
• Silver Alloy Contacts — Reliable, long-lasting high-current switching.

The Bluewater latching remote solenoid battery switch is a heavy-duty marine solenoid for remote activation of power circuits and battery isolation from a remote panel.

It's controlled by a momentary SPDT (On)-Off-(On) switch, making it a clean way to add remote battery control to boats and RVs.

Specifications

Type	Latching remote solenoid
Control Voltage	9–16VDC (12V systems)
Current Draw	None in ON or OFF state
Remote Control Switch	Momentary SPDT (On)-Off-(On)
Terminal Studs	3/8"-16 tin-plated copper
Contacts	Silver alloy
Manual Override	Yes, with Lock Off
