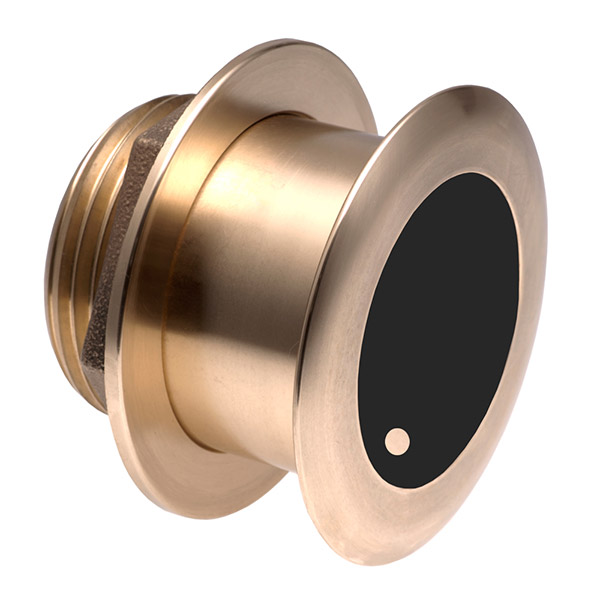

B175HW 20Deg Tilt Bronze Thru Hull 8-Pin

Garmin B175CHW 20Deg Tlilted Element Bronze Thru-Hull with 8-Pin

Model: 010-12181-22

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.

Specifications

Cable length	39 ft
Depth/Temperature	Yes
Power	1kW
Frequency	150-250 kHz
Supported deadrise/Transom angles	16 deg-24 deg degree deadrise
Maximum depth	600 ft.
Number of pins	8-pin
Beamwidth	25 deg
