GARMIN
GSD25 Premium Sonar Module
- Manufacturer part #
- 010-01159-00
- UPC
- 753759132385
- Condition
- New
$752.95
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)

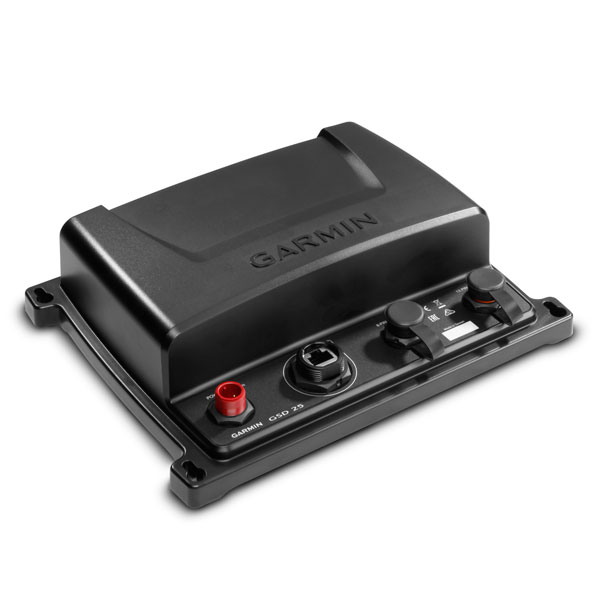

Garmin GSD 25 Premium Sonar Module
1kW CHIRP, DownVü, SideVü
Model: 010-01159-00UPC: 753759132385
- Premium remote network sonar solution
- Includes true dual-channel 1 kW CHIRP, plus CHIRP SideVü and DownVü scanning sonar for the clearest images on the water (transducers sold separately)
- Provides serious sportsfishers outstanding fishfinding and bottom tracking capabilities
- Helps distinguish between small and closely spaced fish at key fishing depths
- Depth capability to 5,000 feet
The GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP DownVü and SideVü sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.
True Dual-Channel 1 kW CHIRP
CHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.
Clearest Scanning Sonar Images on the Water
Adding CHIRP technology to DownVü and SideVü scanning sonar further enhances the resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP DownVü and SideVü scanning sonar. Transducer sold separately.
| Weight | 1.7lbs |
| Water Proof Rating | IPX7 |
| Temperature range | From 5&176;F to 158&176;F (from -15&176;C to 70&176;C) |
| Garmin Network Ports | 1 |
| Transmit Power | 1kw |
| Frequenscies Supported | Traditional: 50/200, 77/200, 83/200 Single Channel CHIRP: 40-250 Dual Channel CHIRP: 40-250 SideVü/DownVü: CHIRP 455/800 & CHIRP 260/455 (dependent on transducer) |
| Maximum Depth | 5000ft |
| Traditional CHIRP Capable | Yes |
| DownVüTM | Yes with CHIRP |
| SideVüTM | Yes with CHIRP |
| Input Voltage | 10-35vDC |
| Input Amps | 27 W max |
| Dimensions | 9.9 in×7.6 in×2. 6 in |
What's in the Box:
- GSD 25
- Right Angle Power Cable 6 feet
- Right Angle Network Cable 6 feet
- Mounting Hardware
- Documentation
Specifications
Physical dimensions 9.9"×7.6"×2.6" (251 mm × 192 mm × 66 mm)
Weight 1.7 lbs (0.77 kg)
Water rating IPX7
Temperature range From 5°F to 158°F (from -15°C to 70°C)
Case material Polycarbonate
Garmin Marine Network™ ports 1
Electrical
Power input 10-35 V
Power usage 27 W maximum
Fuse 4.0 A
Compass-safe distance 10 cm
Sonar Features & Specifications
Transmit power 1 kW
Frequencies supported
Traditional: 50/200, 77/200, 83/200
Single Channel CHIRP: 40-250
Dual Channel CHIRP: 40-250
SideVü/DownVü: CHIRP 455/800 & CHIRP 260/455
(dependent on transducer)
Maximum depth 5,000 ft. (1,524 m)
Traditional CHIRP capable Yes
DownVü™ Yes with CHIRP
SideVü™ Yes with CHIRP
Product comparison:
| GSD 24 | GCV 10 | GSD 25 | GSD 26 | |
| Transmit Power (RMS) | up to 2 kW | 500 W | up to 1 kW | up to 3 kW |
| True Dual-Channel CHIRP | • | • | ||
| Traditional sonar | • | • | • | |
| DownVü with CHIRP | • | • | ||
| SideVü with CHIRP | • | • | ||
| Traditional CHIRP | • | • | ||
| Frequencies Supported (kHz) | 50,200 | SideVü/DownVü CHIRP: 455/800 | Traditional: 50/200, 77/200, 83/200; Single Channel CHIRP: 40-250; Dual Channel CHIRP: 40-250; SideVü/DownVü: CHIRP 455/800 & CHIRP 260/455 | Dual Channel CHIRP: 28-250 |
| Maximum Depth Capabilities | 5,000 ft | DownVü: 750 ft; SideVü: 500 ft | DownVü: 750 ft; SideVü: 500 ft; Traditional: 5,000 ft | 10,000 ft |
| Water Speed | • | • | • | |
| Water Temperature | • | • | • | • |
| Garmin Marine Network Ports | 1 | 3 | 1 | 1 |
Package contents
- GSD 25
- Right-angle power cable (6 feet)
- Right-angle network cable (6 feet)
- Mounting hardware
- Documentation
Shipping weight: 3.4 lb
