GPSMAP 8610XSV 10in Comb With USand Canada GN+

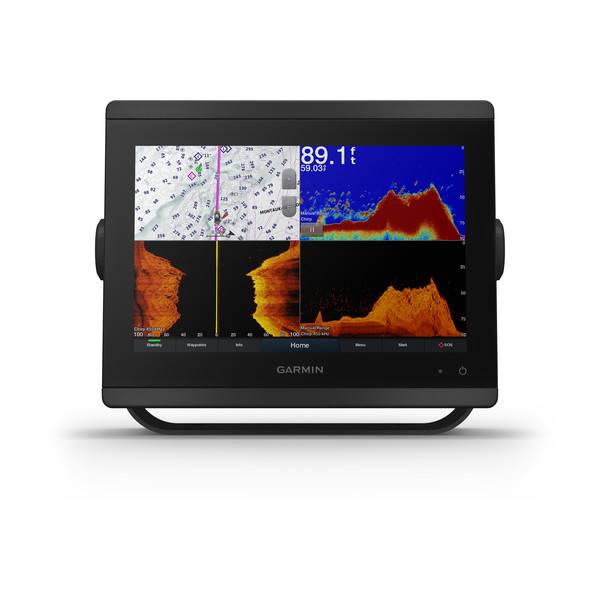

Garmin GPSMAP® 8610xsv 10 in Chartplotter/Sonar Combo with Full HD In-Plane Switching (IPS) Touchscreen and Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Model: 010-02091-51

• Features a 10 in full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
• Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System and the full line of live sonar products (transducers sold separately)
• Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush
• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system - from sonar, radar and autopilots to instruments, cameras and multimedia
• ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
• See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
• For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
• Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there's support for optional Garmin Navionics Vision+™ premium map content
• SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
• Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
• Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more
• Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards

The GPSMAP® 8610xsv chartplotter features a 10 in full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars plus built-in support for Ultra High-Definition scanning (no black box required). It also supports Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for confidence in helping you get where you need to go. Plus, there's support for optional Garmin Navionics Vision+™ premium map content.

Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite - from radar and autopilots to cameras and instruments - controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use the OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® app to your compatible smartphone or tablet to manage your marine experience - from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.

Specifications

General
Dimensions	10.25 in x 8.0625 in x 2.95 in (25.9 cm x 20.5 cm x 7.5 cm)
Weight	5.2 lbs (2.4 kg)
Water rating	IPX7
Display type	WUXGA, IPS; touchscreen
Display size	8.6 in x 5.4 in; 10.1 in diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)
Display resolution	1920 x 1200 pixels
Mounting options	Bail, flat or flush (Garmin does not offer hardware or accessories for a flat-mount installation; professional tools and knowledge are required)
Maps and Memory
Accepts data cards	2 microSD™ cards
Waypoints	5,000
Tracks	50 saved tracks; 50,000 track points
Routes	100
Built-in maps	Garmin Navionics+ (inland and coastal), Auto Guidance+, tide tables
Optional map support	Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, standard mapping, Garmin Quickdraw Contours, raster chart support
Sensors
Satellite systems	GPS, GLONASS, Galileo
Built-in receiver	Yes, 10 Hz
Supports WAAS	Yes
NMEA 2000 compatible	Yes
NMEA 0183 compatible	Yes
Chartplotter Features
SmartMode compatible	Yes
AIS	Yes
DSC	Yes
Fusion-Link™ compatible radios	Yes
GSD black box sonar support	Yes
GCV black box sonar support	Yes
ActiveCaptain® compatible	Yes
GRID compatible	Yes
Wireless remote compatible	Yes
Sailing features	Yes
Spoken audio alerts	Yes
OneHelm support	Yes
Electrical
Power input	10 to 32 Vdc
Typical current draw at 12 Vdc	1.5 A
Maximum current draw at 12 Vdc	6.0 A
Maximum power usage at 10 Vdc	40.1 W
Sonar
Displays sonar	Yes
Power output	1 kW
Traditional sonar	Built-in dual channel CHIRP, 70/83/200 kHz (L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar	Yes
Networking and Connections
NMEA 2000 ports	1
NMEA 0183 ports	1 input (Rx), 1 output (Tx)
Video input ports	1 BNC composite; 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network ports	2
Bluetooth® pairing	Yes
ANT® connectivity	Yes
Garmin Wi-Fi network	Yes (local connection)

What's in the Box:

• GPSMAP 8610xsv
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Bail mount with knobs
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation
